vnc SERIES AREA SENSOR

Introduction

The VNC-series area sensing light curtains are versatile in terms of price and variety, and are easy to meet customer needs. They are the most suitable for use in a wide range of sensing light curtains for area detection, protection, inspection and discrimination. Instruction LVD requirements, with CE marking.

Characteristics

  • The optical axis spacing is available in 75mm series, which is most suitable for intrusion detection in various areas. The protection length is 70mm~630mm in various types and styles to meet the multiple needs of customers. The detection distance can be selected up to 3m. The optical axis is a cross detection method to increase the detection range of the light curtain. It is easy to install and calibrate, and provides all-round fixing plates and cylindrical fixed installation. PNP or NPN output methods are provided to meet customer needs. Good anti-interference performance, aluminum extrusion structure, and convenient cable wiring method.

General Specifications

Item
Specification
Number of Beams
2~10
Beam Pitch
75mm
Protective Height
70mm ~ 630mm
Sensing Range
1m ~ 3m (Low-power emission range: 0.5m ~ 1.5m)
Response Time
45ms (excluding relay activation time)
Safety Classification
Complies with CE LVD directive; not safety-rated (Do not use on hazardous shearing equipment)
Power Supply
22-28VDC, ripple <10%, with reverse polarity protection
Power Consumption
Basic model 40mA, each additional beam adds 8mA, max current 400mA
Output Mode
1 set PNP output, model option available for NPN output
Housing Finish
Aluminum alloy; silver baked enamel coating (transparent)
Light Curtain Connector
M12 connector (4-pin TX, 5-pin RX)
Operating Temperature
-10°C to +50°C
Waterproof/Dustproof Rating
IP65 Protection Level

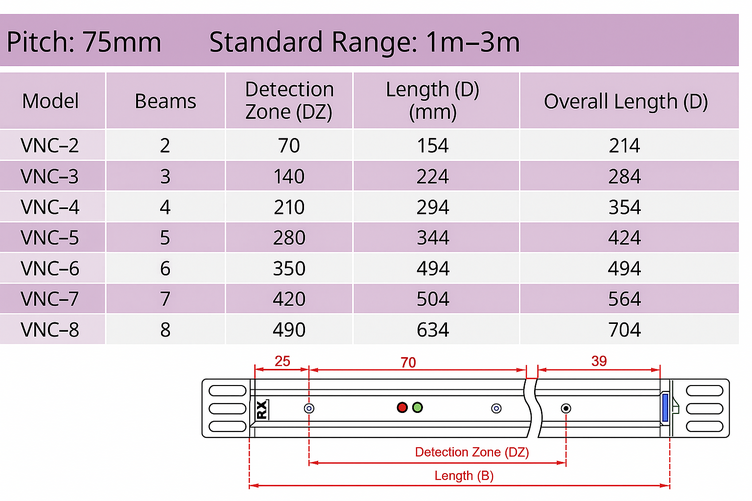

VNC Specifications and Dimensions

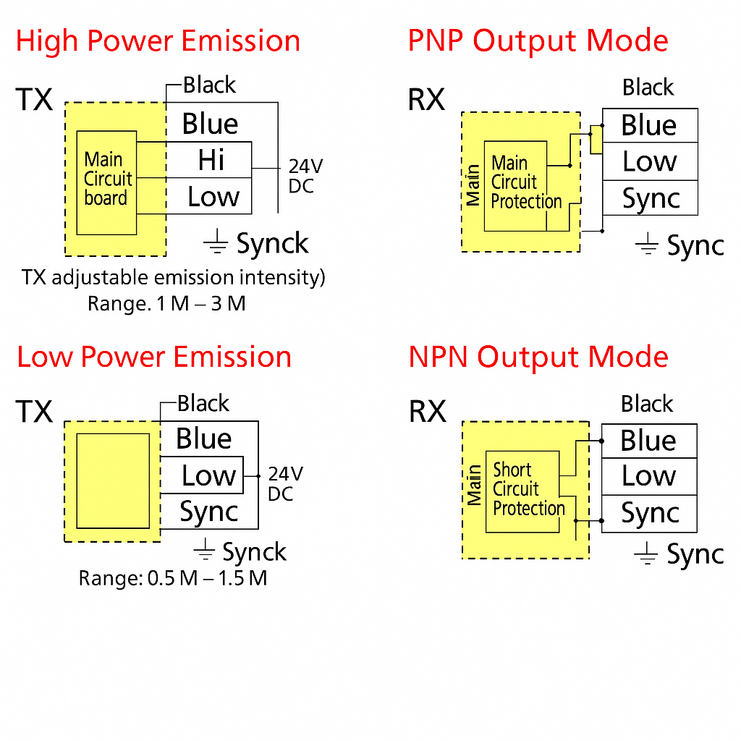

VNC Electrical Connections

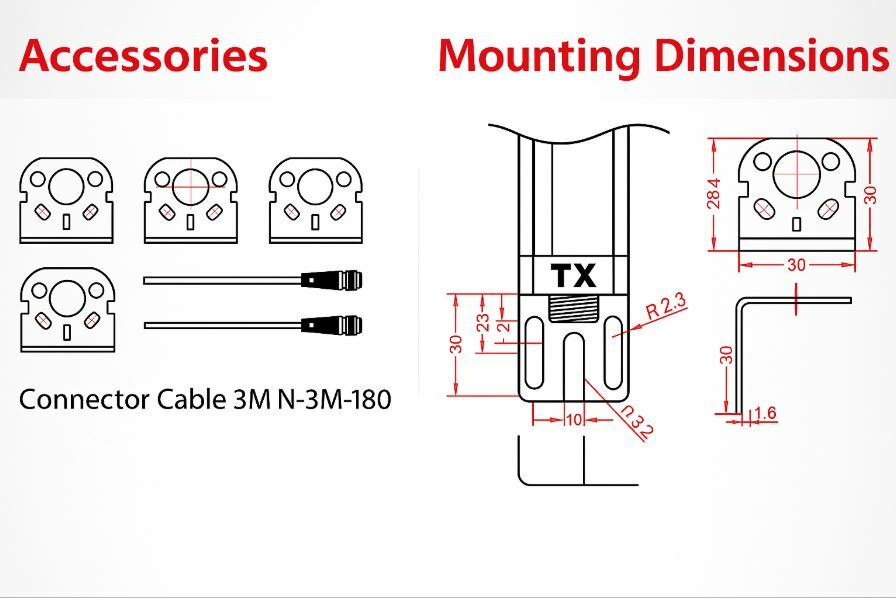

VNC Series Accessories Specifications and Dimensions
