8K3 Logistics Safety Light Curtain

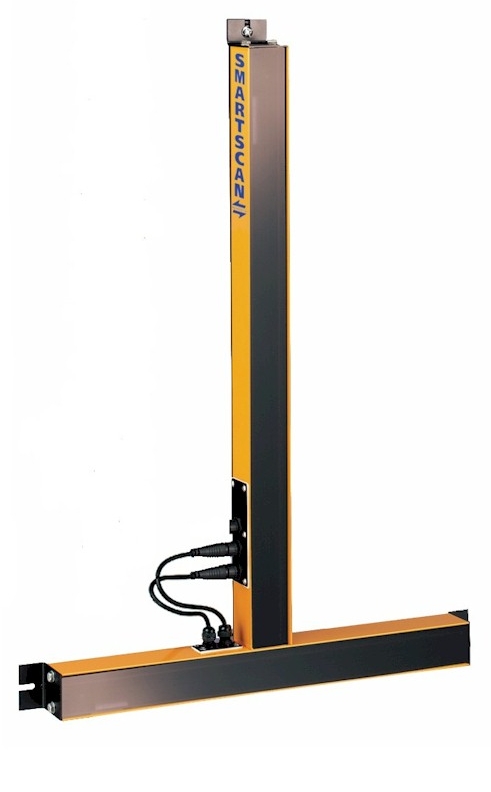

Smartscan 8K3 T Series

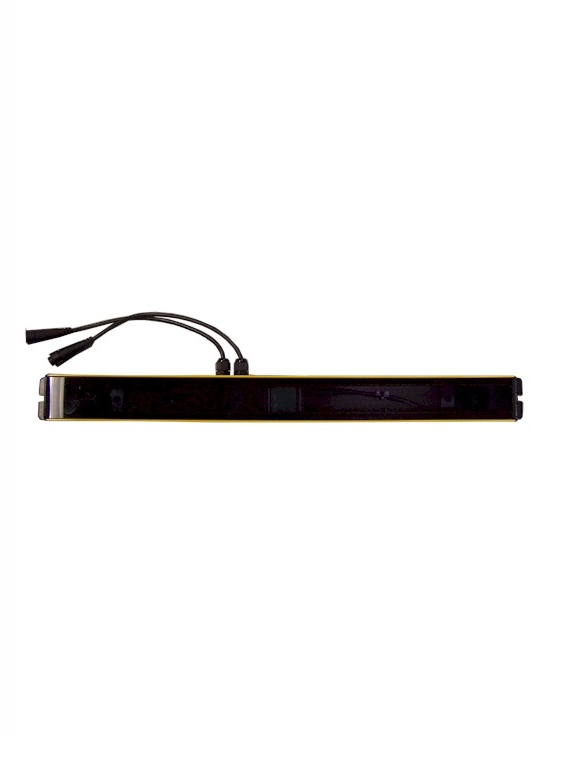

Smartscan 8K3 T Series Side

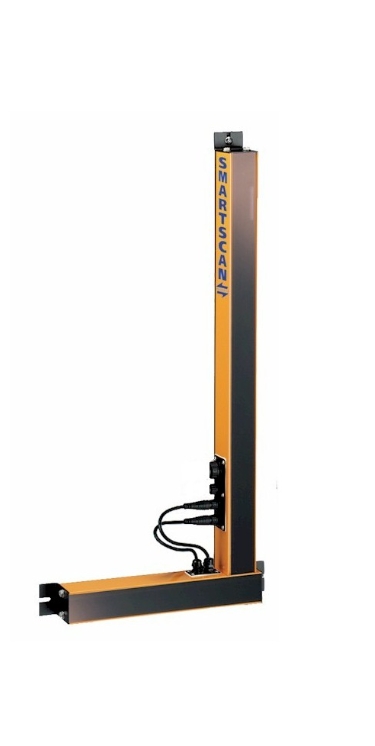

Smartscan 8K3 L Series

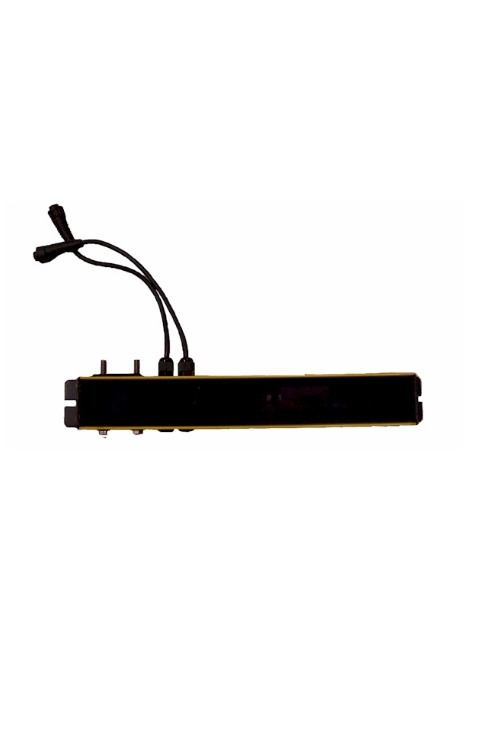

Smartscan 8K3 L Series Side

Introduction

The 8000 Plus Series safety light curtain is available in 30mm & 40mm Object Detection Capability (ODC) as well as a Perimeter Guarding option. They are typically used in combination with an 8000 Series mute module for pallet entry / exit or pallet exit only applications. Please scroll down the page or use the following links to learn more.

Characteristics

  •    Provides 30 mm and 40 mm object detection capabilities (ODC).
  •    It is a perfect match for the 8000 series Muting Module.
  •    Supports perimeter guarding and area security barrier settings.
  •    Designed for seamless integration with 8000 series peripherals and control systems.
  •    It features a highly reliable, industrial-grade anti-interference and durable design.
  •    Designed specifically for automated production lines and perimeter isolation, significantly reducing equipment integration costs.

General Specifications

Directions
"T" mute module(suitable for entry and exit applications)
"L" mute module(suitable for exit applications only)
Model
8K3-001(T)
8K3-002(L)
Number of Beams
2
2
Overall Length(B)
500
325
Weight (TX+RX)Kg
1.8
1.2
Range
Cross-beam muting : 1.25-2.5m
Parallel-beam muting : 0.5-3.5m

Cable connection instructions

Cable A: Connects the transmitter (Tx) columm to the receiver (Rx) column. It has an 8 pin circular, bayonet locking connector at each end.

Cable B: This cable connects the light curtain to the user equipment e.g. control panel.At one end it has a circular 18 pin socket enabling it to be plugged into the receiver (Rx) and the other end has open wires to connect to the control panel.
