LX series Thin Area sensor

Introduction


LX series area sensing light curtain, price concessions, stable quality, variety of types, to meet customer needs, is the most suitable for regional use in the detection, protection, inspection and other diversified sensing. Instruction LVD requirements, with CE marking.

The LX series is side mounting and has a thickness of only 12.4mm.

Characteristics


  • Various type, 10mm , 20mm , 40mm.
  • Detection zone:100mm ~ 940mm.
  • Side mounting.
  • Two frequency options(FREQ A and FREQ B)
  • Provide NPN or PNP selection.
  • Installation and calibration easy.
  • Quality and stability, price concessions.

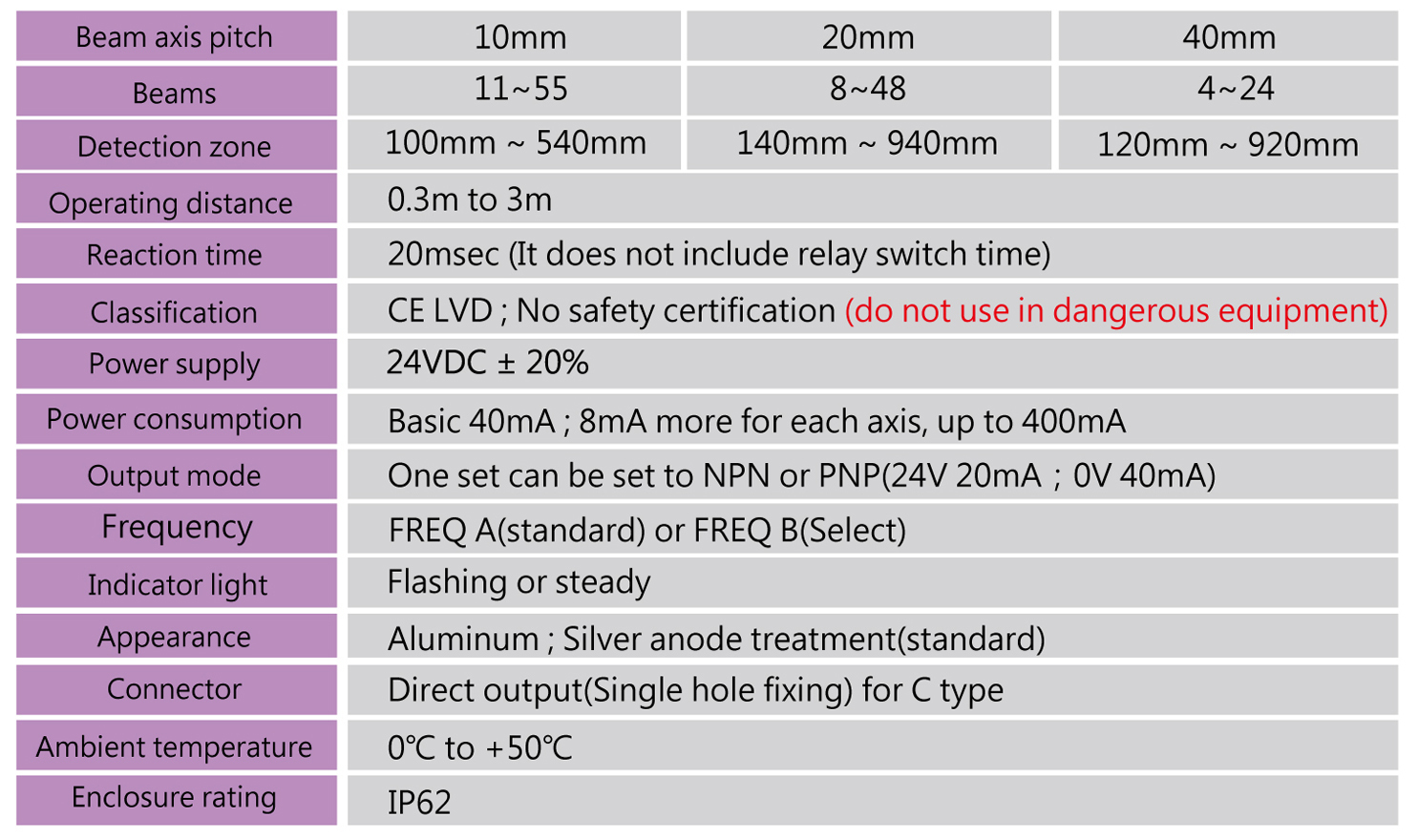

General Specifications

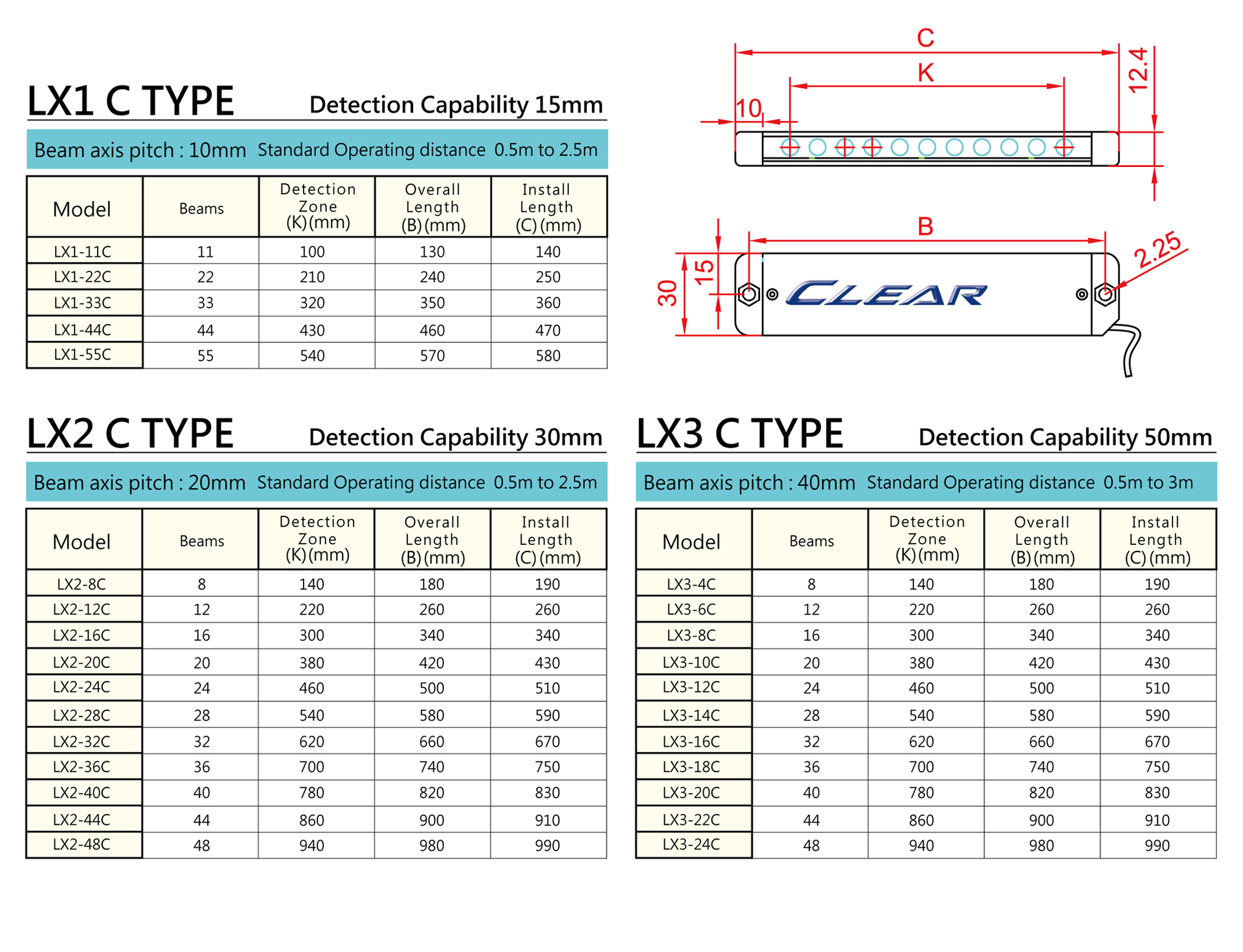

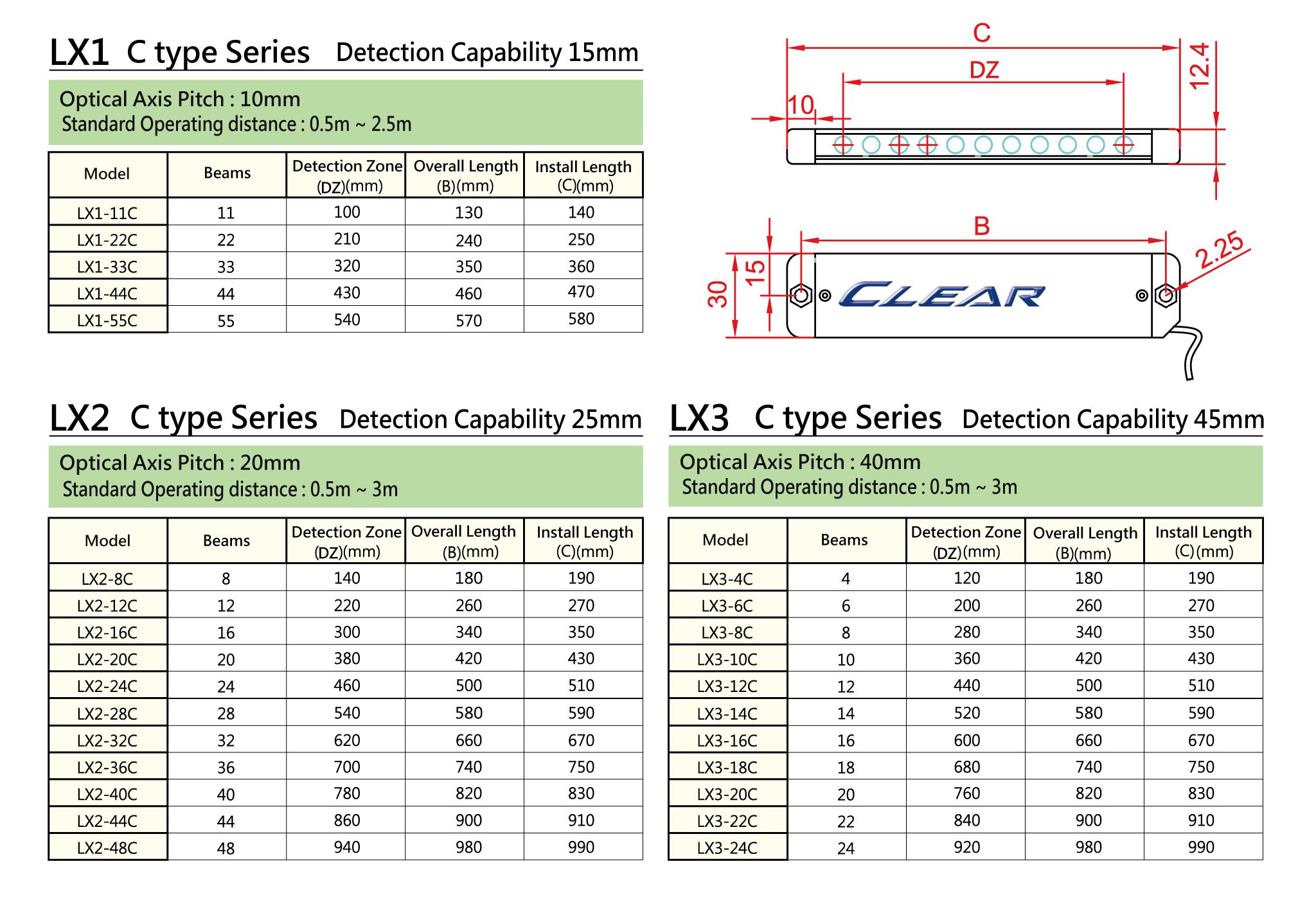

LX series


Electric Connection

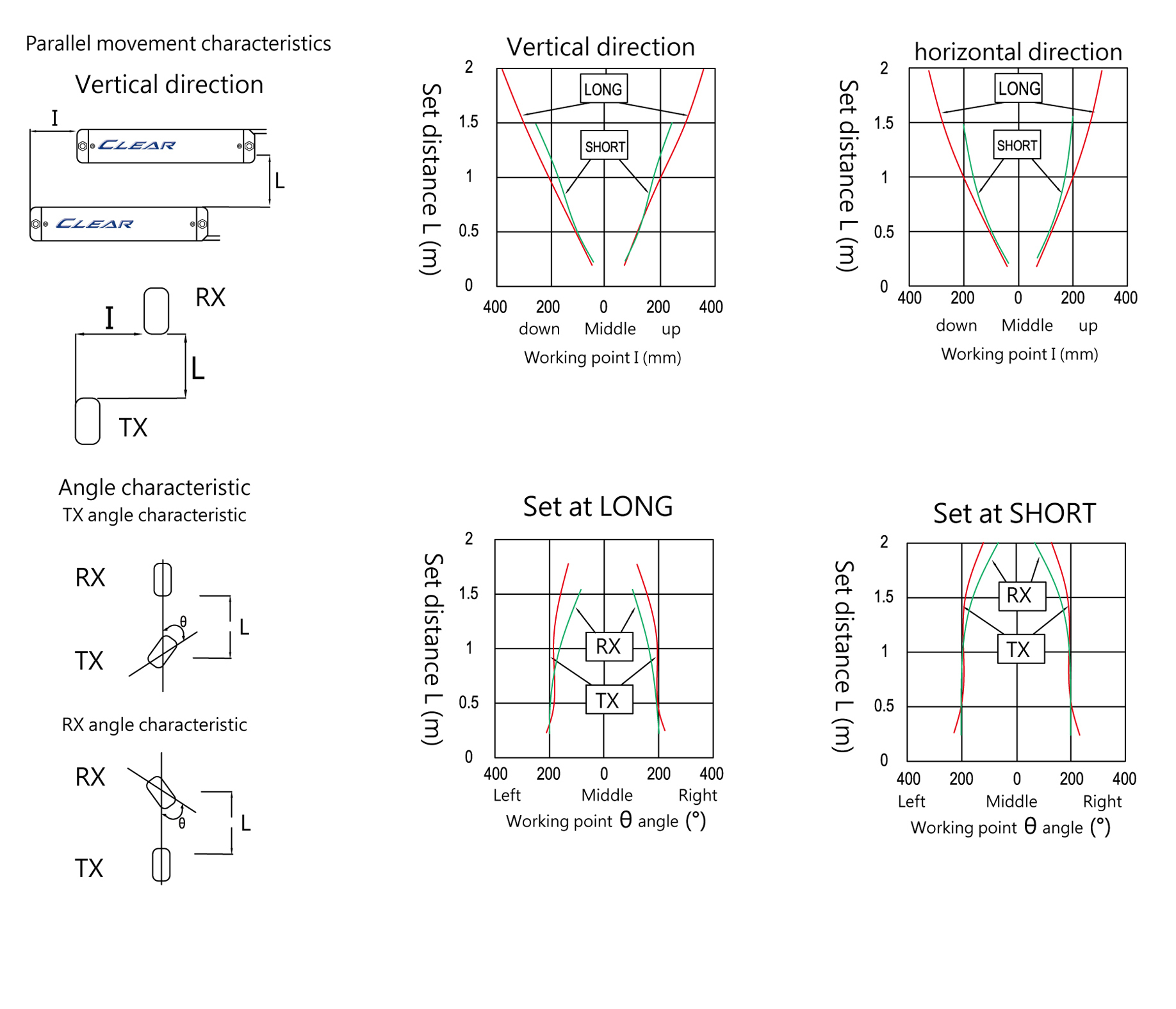

Detection characteristics
