MS series Thin Area sensor

Introduction


MS series area sensing light curtain, price concessions, stable quality, variety of types, to meet customer needs, is the most suitable for regional use in the detection, protection, inspection and other diversified sensing. Instruction LVD requirements, with CE marking.

Characteristics


  • Various type, 25mm(Unextendable) , 10mm , 20mm , 40mm.
  • Detection zone:100mm ~ 940mm.
  • Highly-Visible Indicator light.
  • IP-62.
  • Provide NPN or PNP selection.
  • Installation and calibration easy.
  • Quality and stability, price concessions.
  • With line synchronization,excellent anti-interference ability.

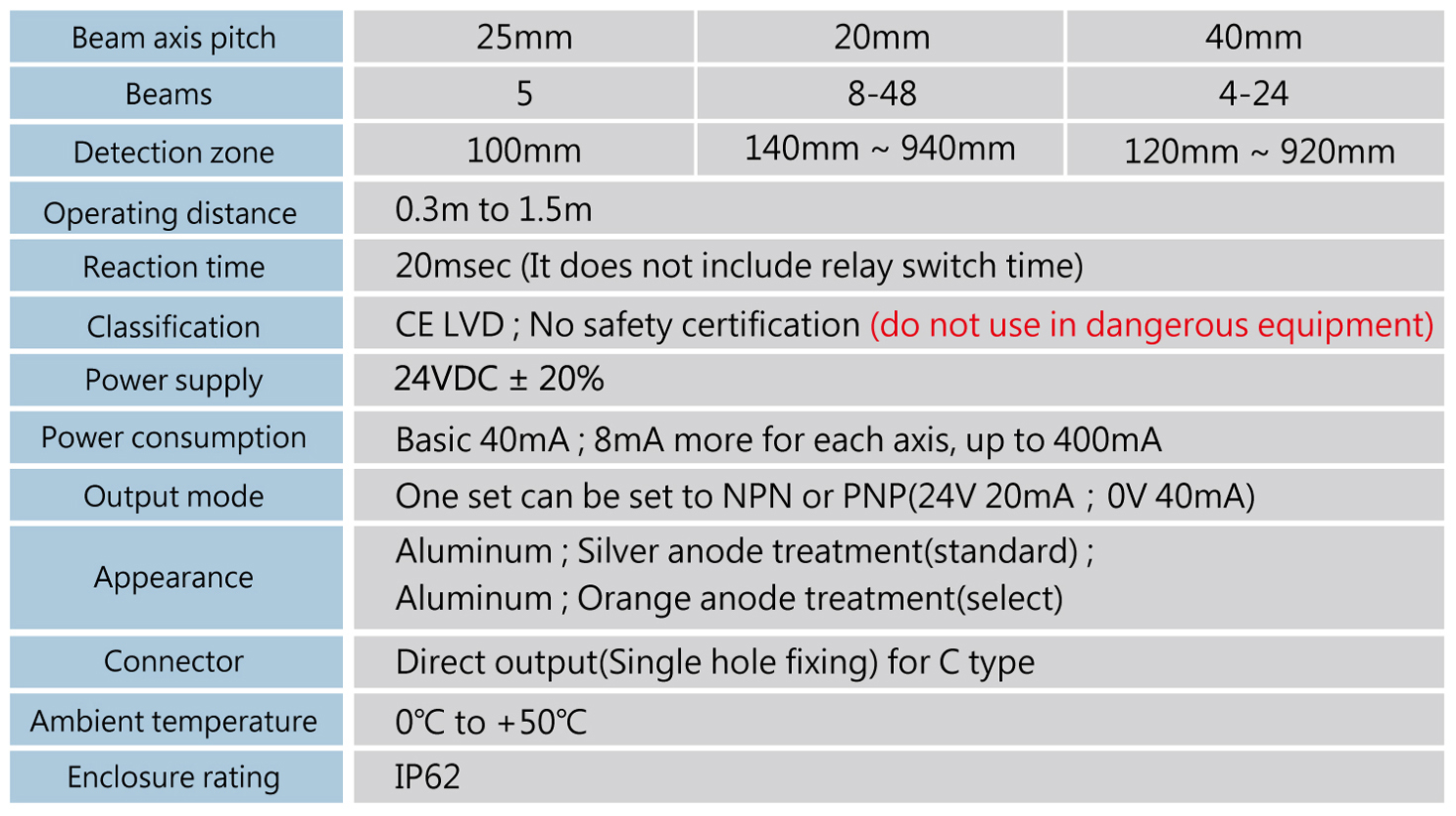

General Specifications

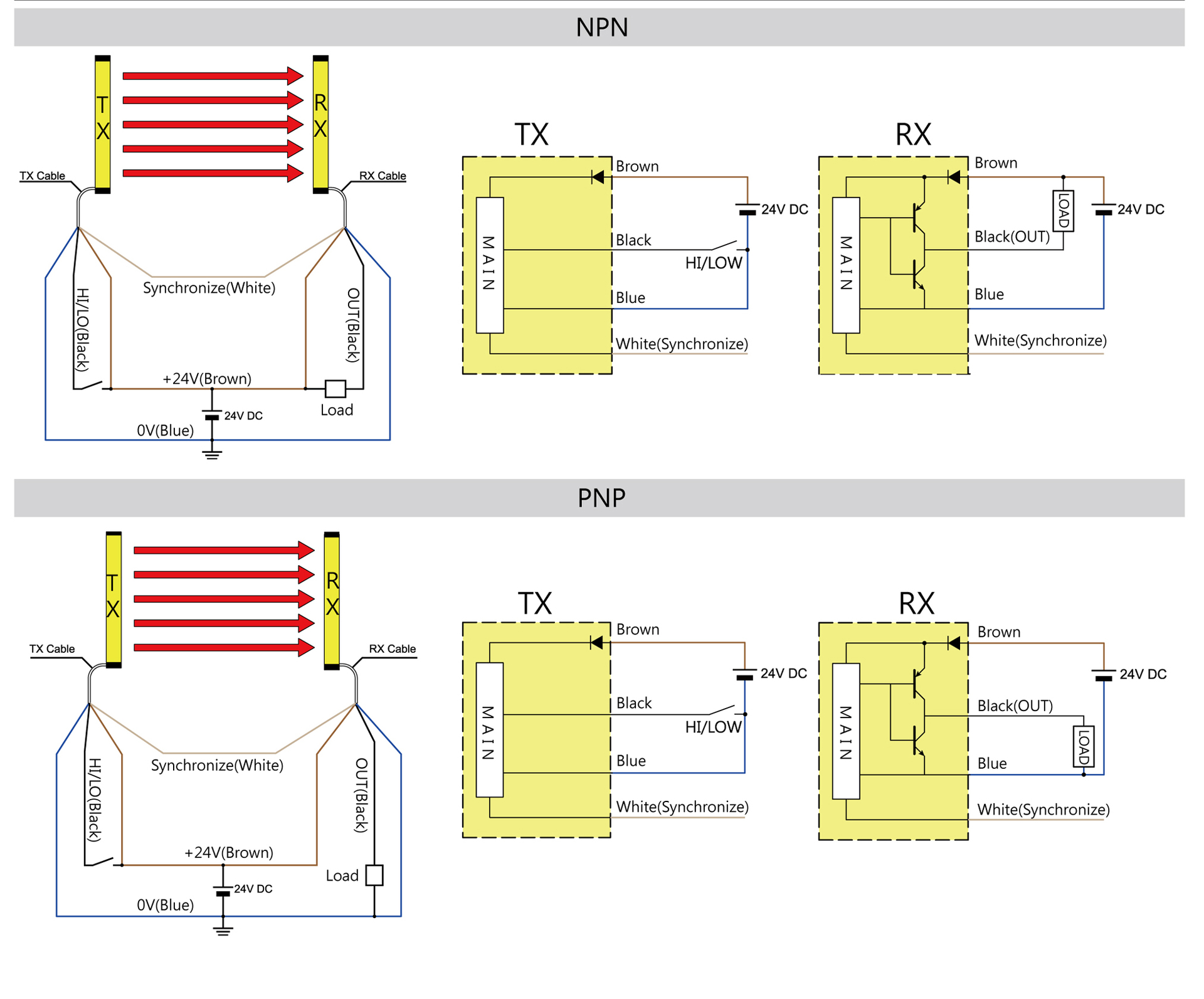

Electric Connection

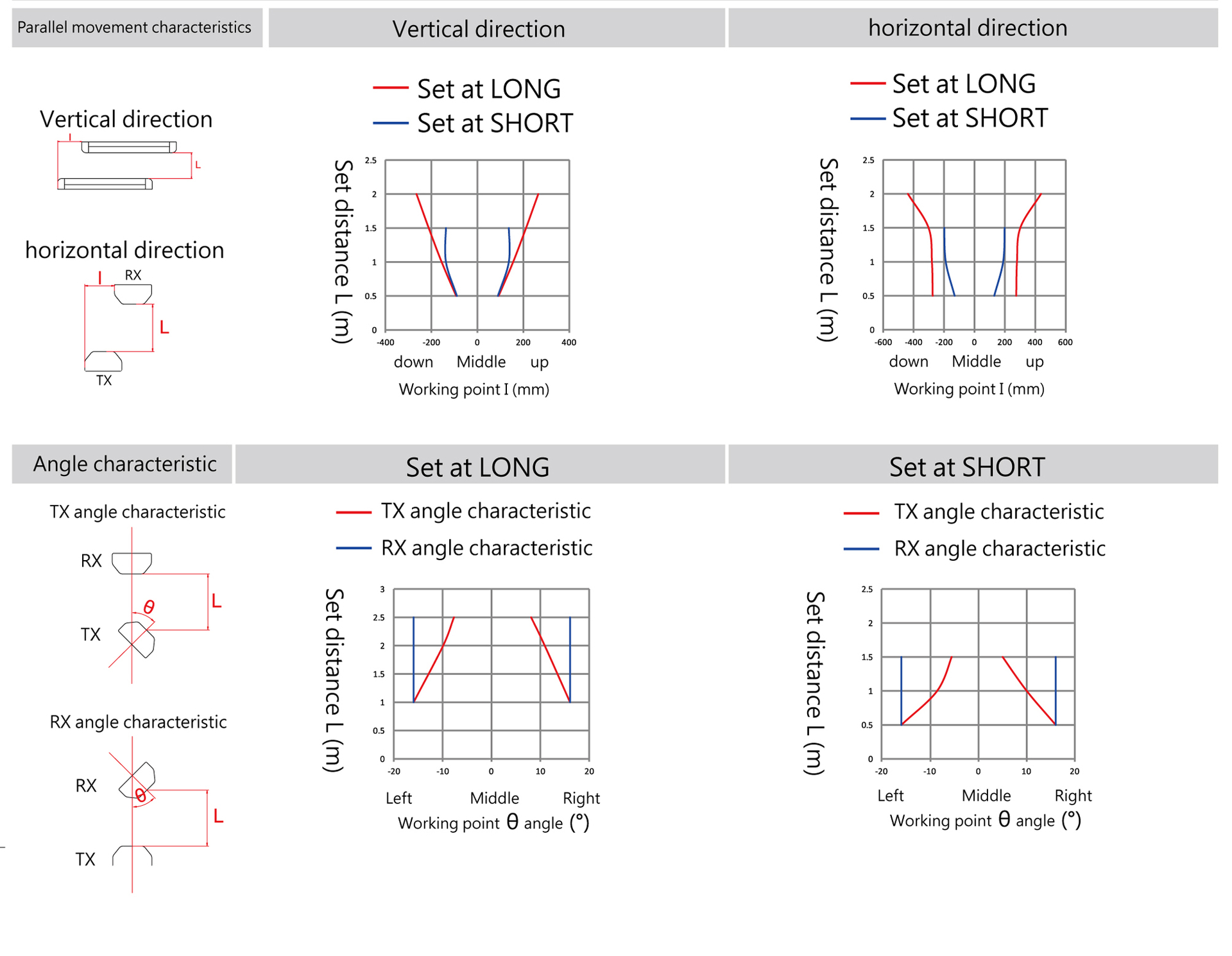

Detection characteristics
