EX series Diffuse reflection mode sensor

Introduction


In addition to the traditional light curtain, the EX series is diffuse and reflective, the transmitting(TX) and the receiving(RX) are all on the same side, using the principle of self-light reflection of the object, suitable for the case where only one side can be installed, conforms to the EMC standard, and passes the third-party detection unit. certificate.

Characteristics


  •  Beam axis pitch 58mm.
  • Detection zone:215mm~customized.
  • Provide NPN or PNP selection.
  • suitable for the case where only one side can be installed
  • Metal structure.

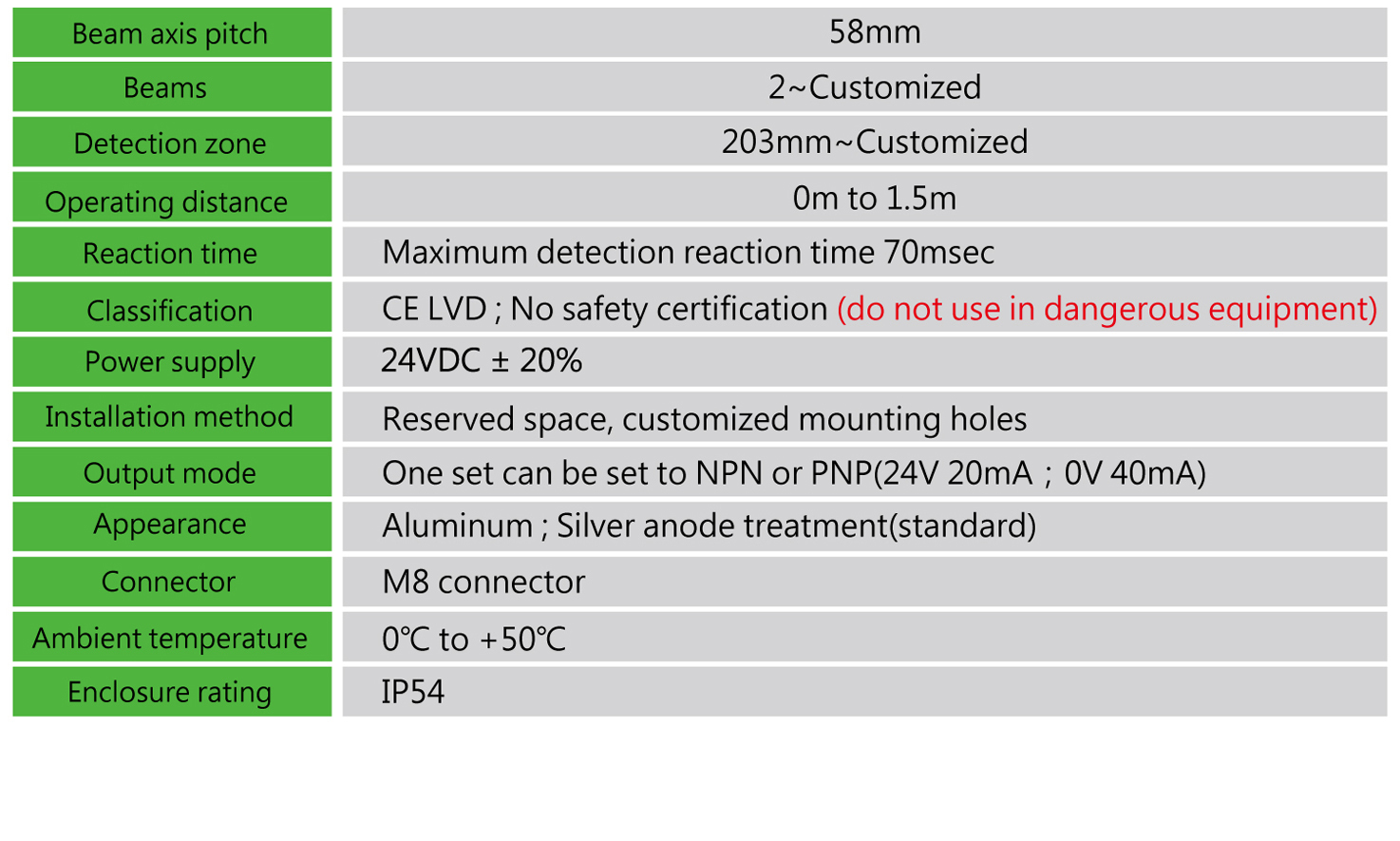

General Specifications
