The 1KN series safety light curtain complies with international safety standards IEC61496-1 and IEC61496-2 TYPE 2. It has obtained a certificate of conformity from a well-known European certification body and also meets the domestic TS certification requirements.
Due to the limited space in factory environments, machines are often placed side by side with minimal distance between them. This highlights the inherent susceptibility of infrared systems to interference. To address this, the 1KN series effectively reduces cross-interference between light curtains through optimized frequency settings and infrared sensor hardware configuration.
Available with 30mm and 40mm object detection resolutions for customer selection.
30mm resolution: sensing range 0.5 ~ 5m.
40mm resolution: sensing range 4 ~ 10m.
IP65 waterproof and dustproof rating.
Equipped with self-diagnosis and operation status indicators.
Specially designed to prevent mutual interference between light curtains.
High vibration resistance technology adopted for punching and shearing equipment.
Number of Beams | 6 ~ 72 | |
Detection Resolution | 30mm | 40mm |
Detection Area (mm) | 180mm ~ 1830mm | 190mm ~ 1840mm |
Sensing Range | 0.5m ~ 5m | 4m ~ 10m |
Response Time | 20msec (Excluding relay switching time) | |
Operating Temperature | 0°C to +50°C | |
Waterproof and Dustproof Rating | IP65 Protection Level | |
Power Supply | 24VDC ± 10%，1.5A (MAX) | |
Power Consumption | Transmitter 200mA + Receiver 200mA+ OSSD Output ( 500mA max. ) | |
Light Curtain Connector | M12Terminal Type (T-type) | |

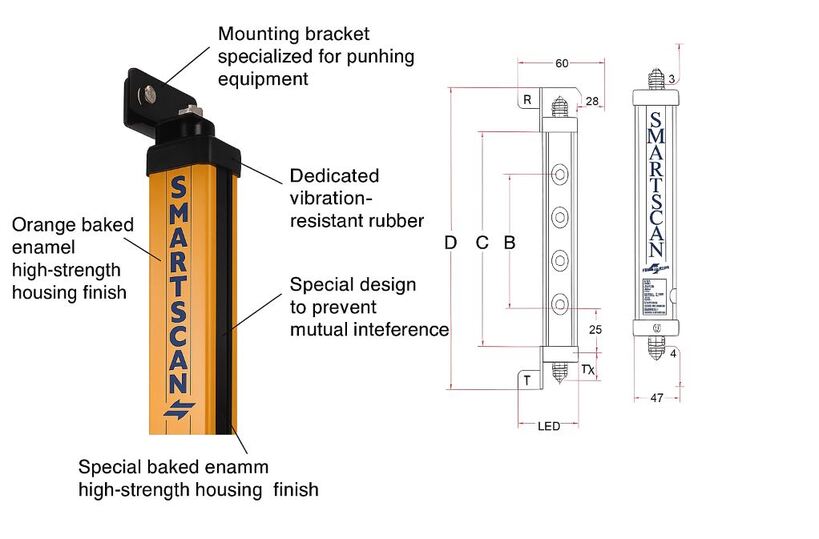

Housing Finish | Aluminum Extrusion; Orange Baked Enamel Finish | |
Safety Classification | IEC61496-1 & IEC61496-2 : TYPE 2 IEC62061 SIL1 & ISO13849-1 PLc | |

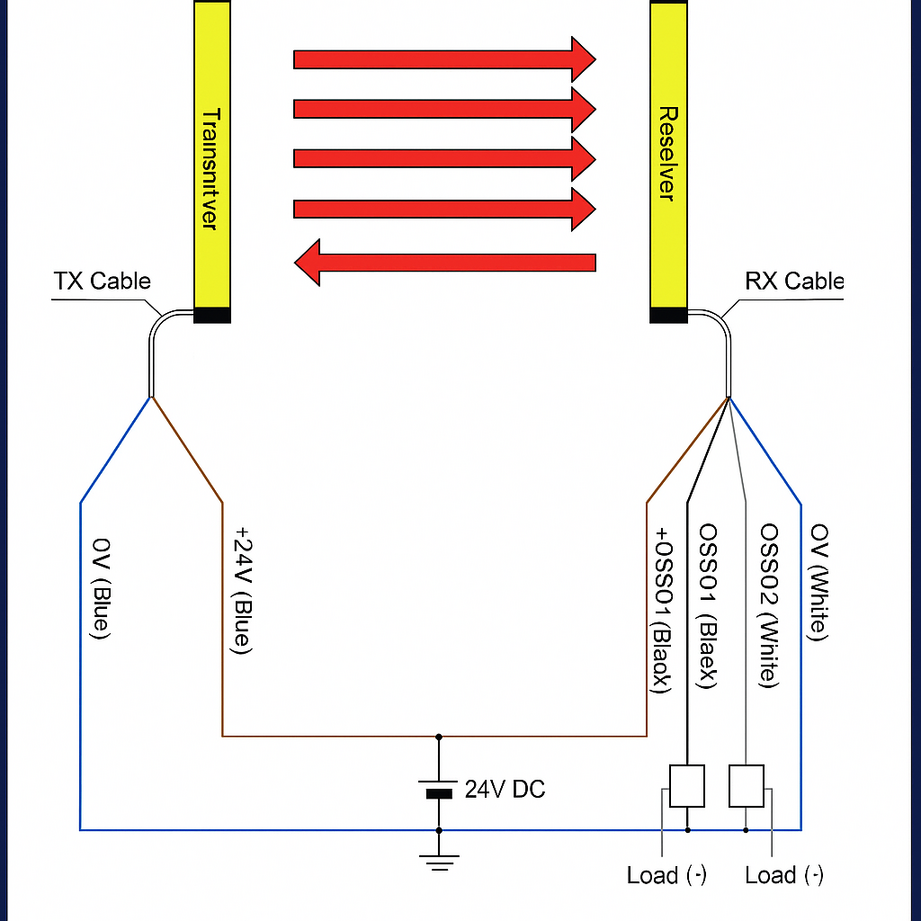

Output Mode | 2 independentsafetyoutputs(solidstatetransistorPNPswitch:500mAperchannel @ 24V DC) | |

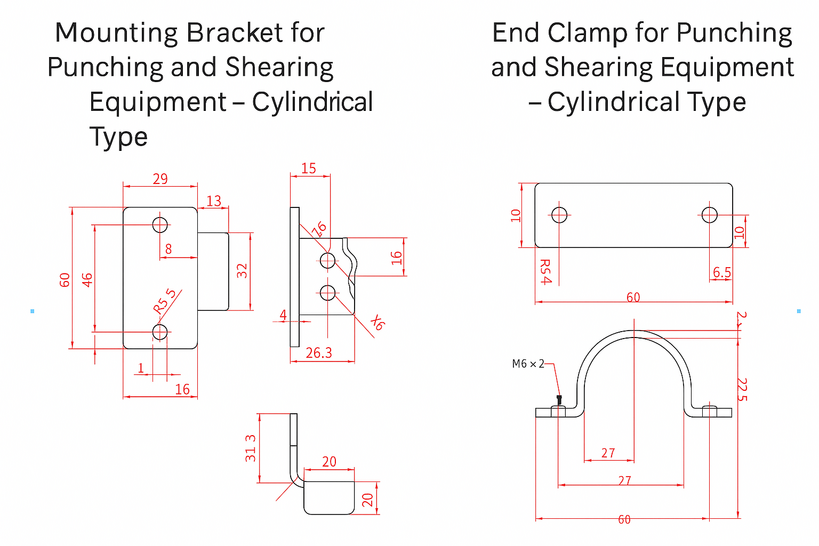

Detection Resolution30mm | Detection Resolution40mm | Specialized for Punching and Shearing Equipment (T-Type Cable Outlet) | |||||
Sensing Range0.5m 至 5m | Sensing Range4m 至 10m | ||||||
Number of Beams | Model Number | Detection Area (K) (mm) | Model Number | (K)(MM) | Total Length of Light Curtain (B) (mm) | Installation Length (C) (mm) | Total Combined Length (D) (mm) |
6 | 1KN6-180 | 180 | 1KN6-190L | 190 | 195 | 265 | 288 |
12 | 1KN12-330 | 330 | 1KN12-340L | 340 | 345 | 415 | 438 |
18 | 1KN18-480 | 480 | 1KN18-490L | 490 | 495 | 565 | 588 |
24 | 1KN24-630 | 630 | 1KN24-640L | 640 | 645 | 715 | 738 |
30 | 1KN30-780 | 780 | 1KN30-790L | 790 | 795 | 865 | 888 |
36 | 1KN36-930 | 930 | 1KN36-940L | 940 | 945 | 1015 | 1038 |
42 | 1KN42-1080 | 1080 | 1KN42-1090L | 1090 | 1095 | 1165 | 1188 |
48 | 1KN48-1230 | 1230 | 1KN48-1240L | 1240 | 1245 | 1315 | 1338 |
54 | 1KN54-1380 | 1380 | 1KN54-1390L | 1390 | 1395 | 1465 | 1488 |
60 | 1KN60-1530 | 1530 | 1KN60-1540L | 1540 | 1445 | 1615 | 1638 |
66 | 1KN66-1680 | 1680 | 1KN66-1690L | 1690 | 1695 | 1765 | 1788 |
72 | 1KN72-1830 | 1830 | 1KN72-1840L | 1840 | 1845 | 1915 | 1938 |
LED Indicator | Status and Meaning | |
|---|---|---|
F1 | Yellow LED Flashing | Transmitter (TX) operating normally and aligned with Receiver (RX) |
F1 | Yellow LED On | Light curtain is obstructed or misaligned with Receiver (RX) |
F2 | Yellow LED Flashing | Receiver (RX) operating normally and aligned with Transmitter (TX) |
F2 | Yellow LED On | Light curtain is obstructed or misaligned with Transmitter (TX) |
F3 | Green LED On | Normal detection in progress, OSSD outputs activated |
F4 | Red LED On | Light curtain is obstructed, OSSD outputs deactivated |
F4 | Red LED Flashing | Abnormal lockout, please clear the issue and power cycle the system |
