PRODUCT

The ST series conform the highest requirements of the latest international safety standards such as ISO13849-1 PL e and IEC62061 safety class SIL3.

It also conform all the requirements of the international light curtain standard IEC61496-1, IEC61496-2 highest level TYPE 4, and has passed the test and verification of the European third party verification unit to obtain the certificate of qualification.

Its safety performance and grade can be applied to all kinds of dangerous machinery such as punching and shearing work machines, and it meets various safety regulations.

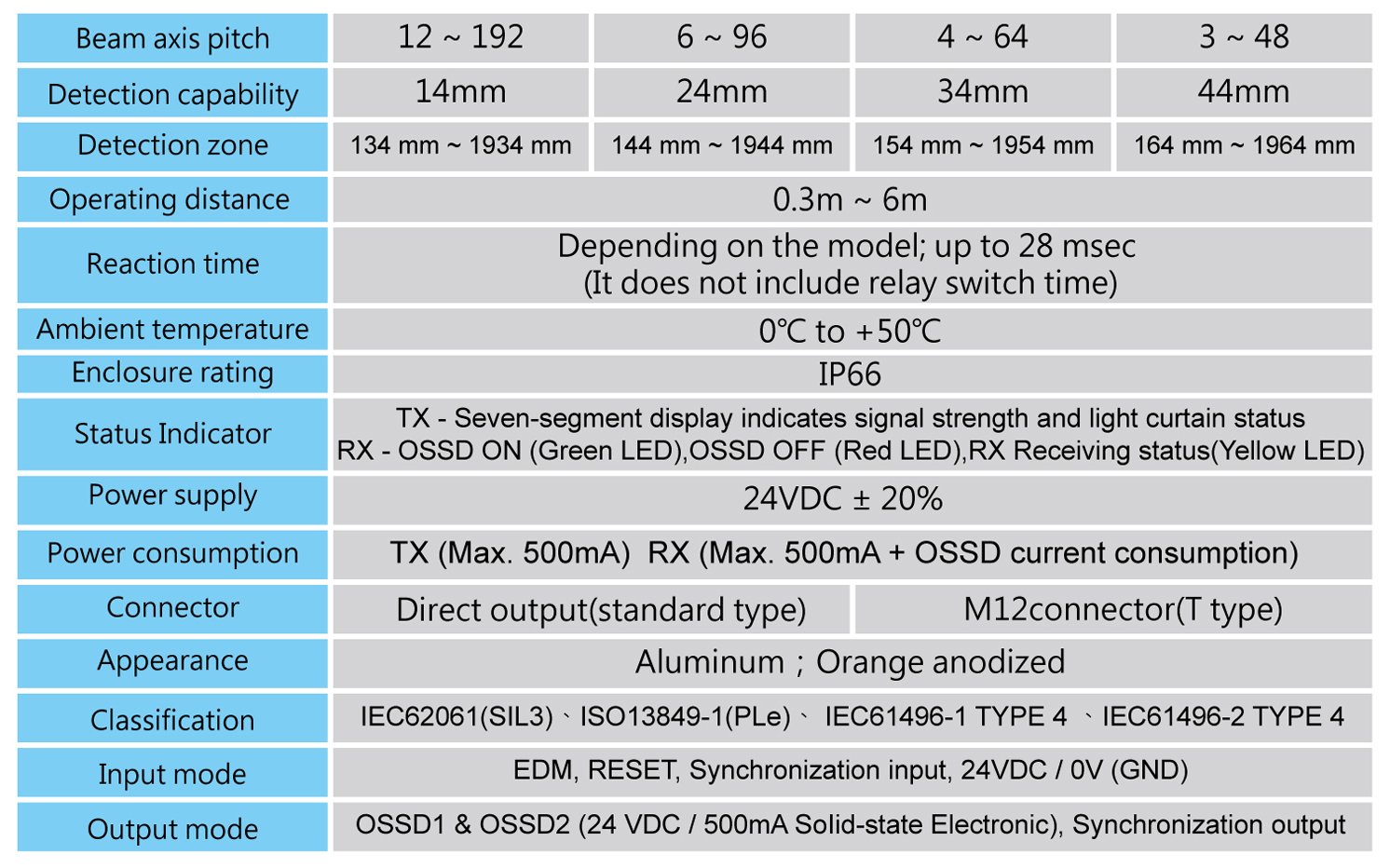

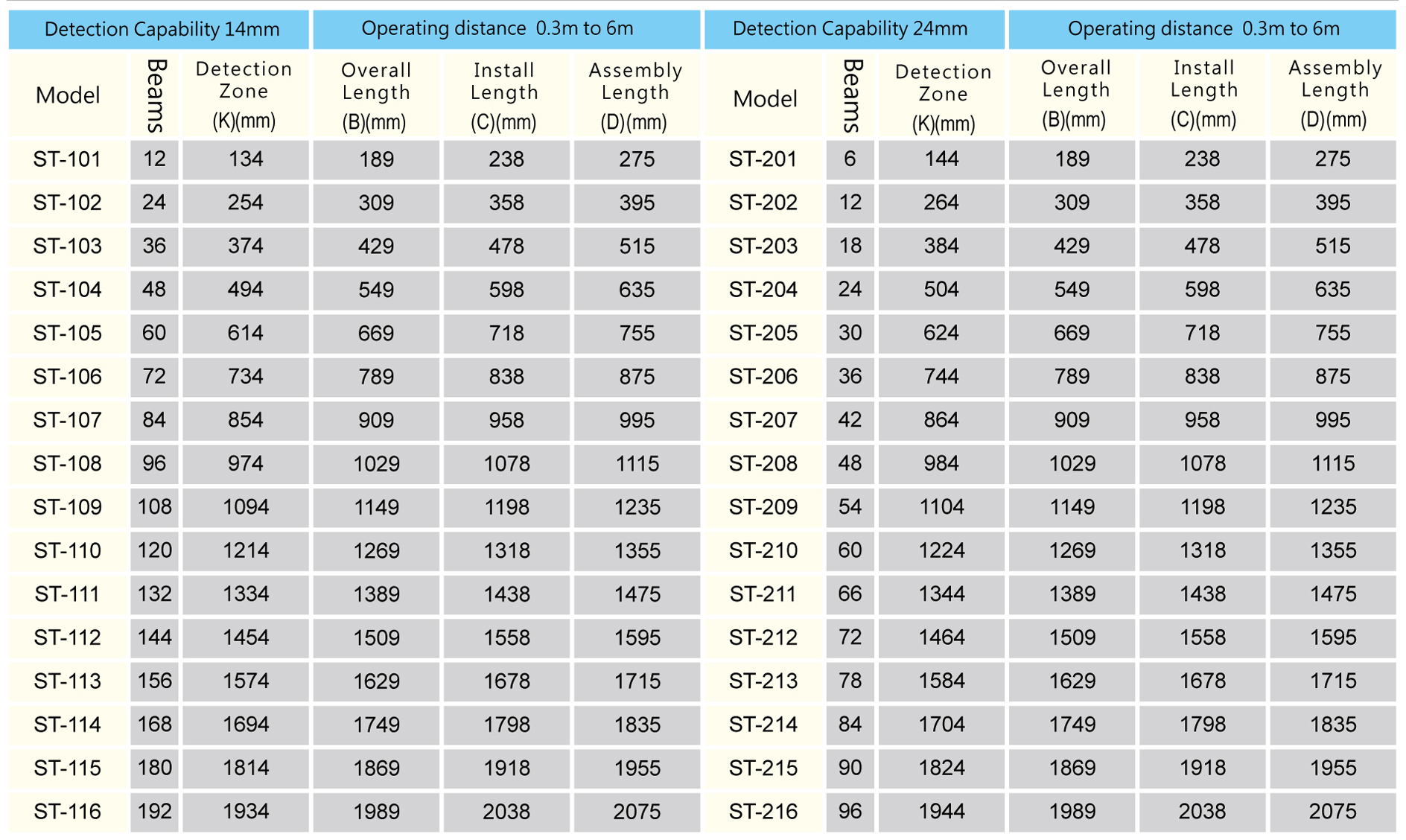

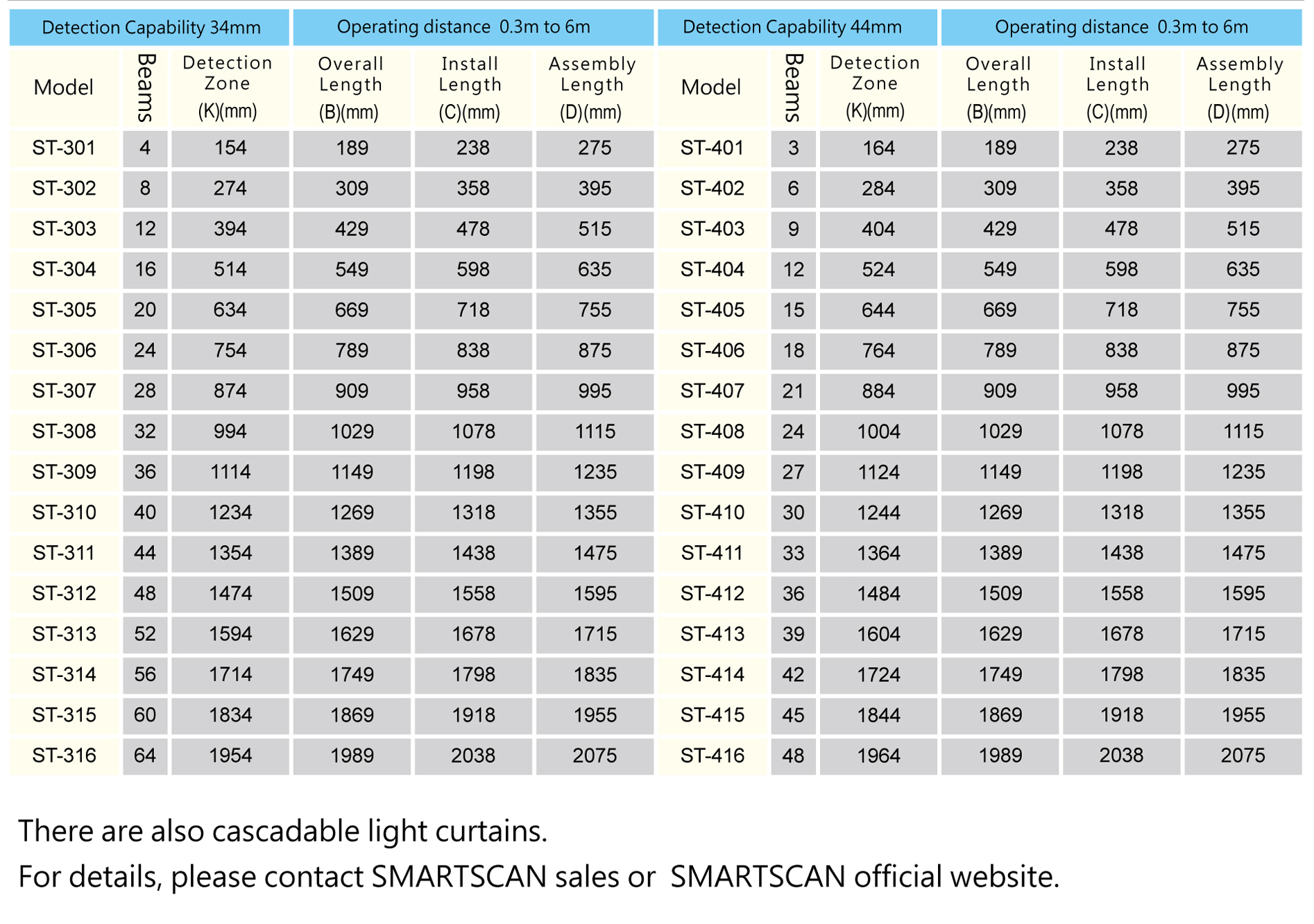

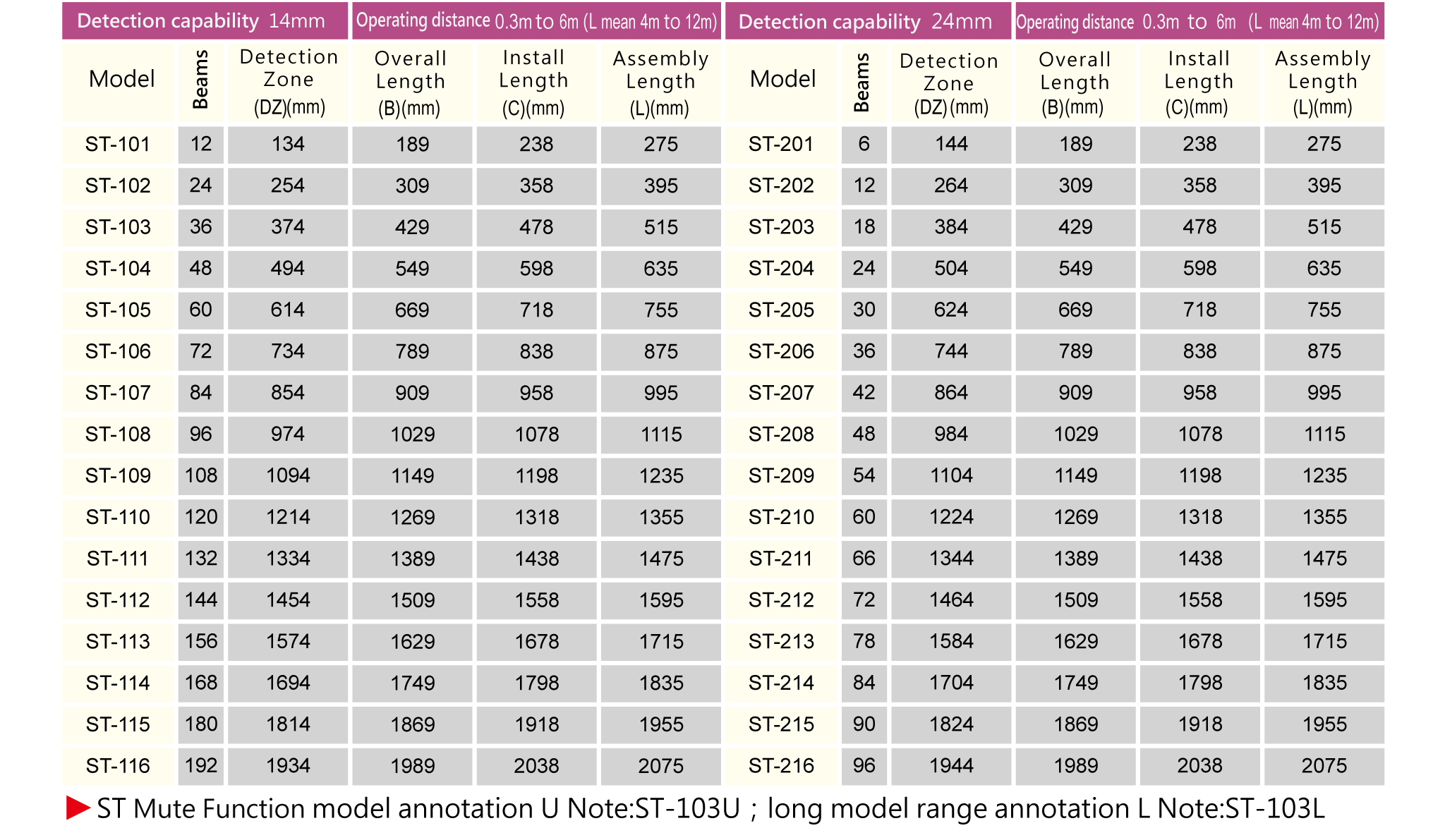

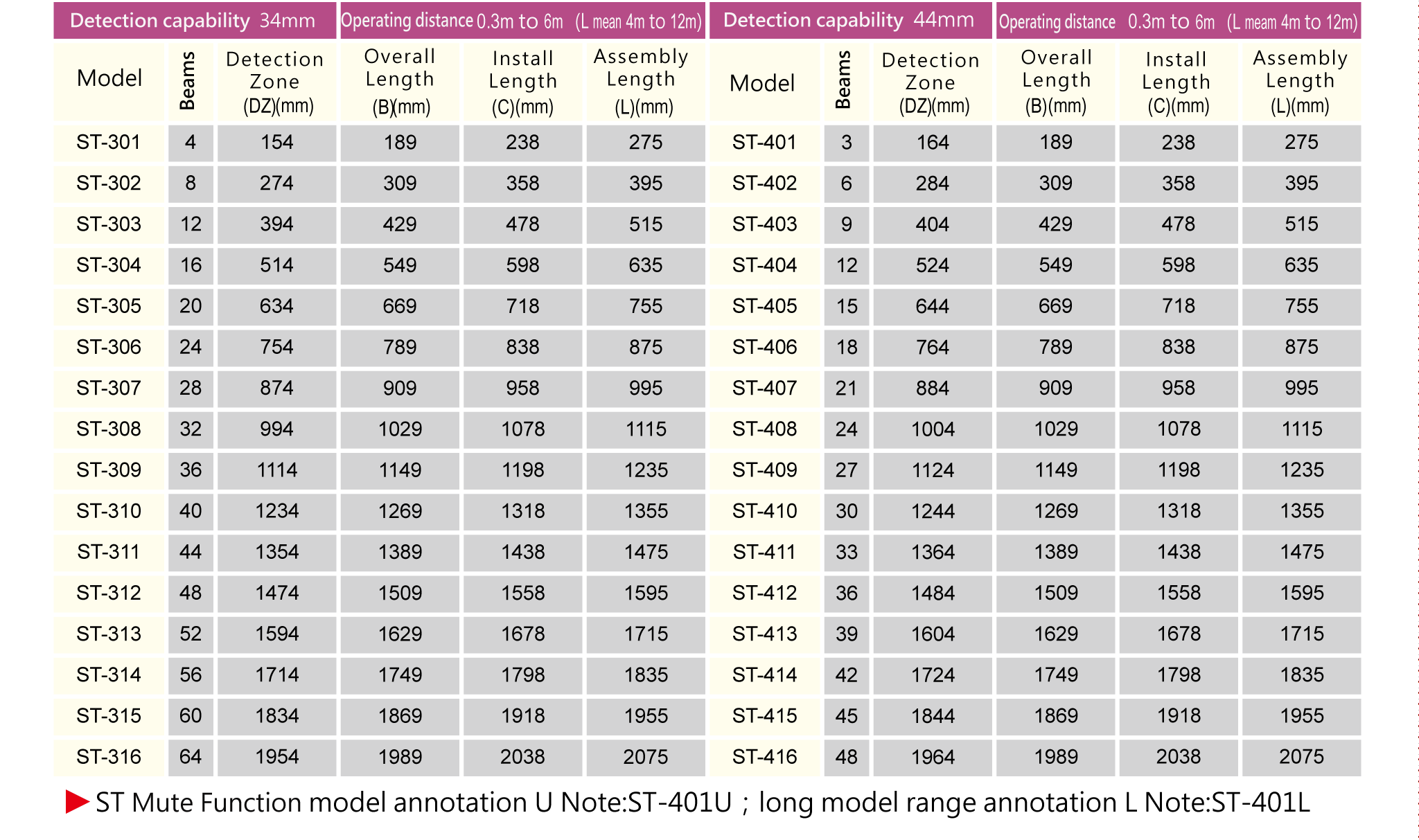

• Various type, 14mm、 24mm、34mm、44mm detection capability.
• Available in a two-section (ME) light curtain form (cascade) to meet customer needs
• Detection zone:134mm ~ 1964mm.

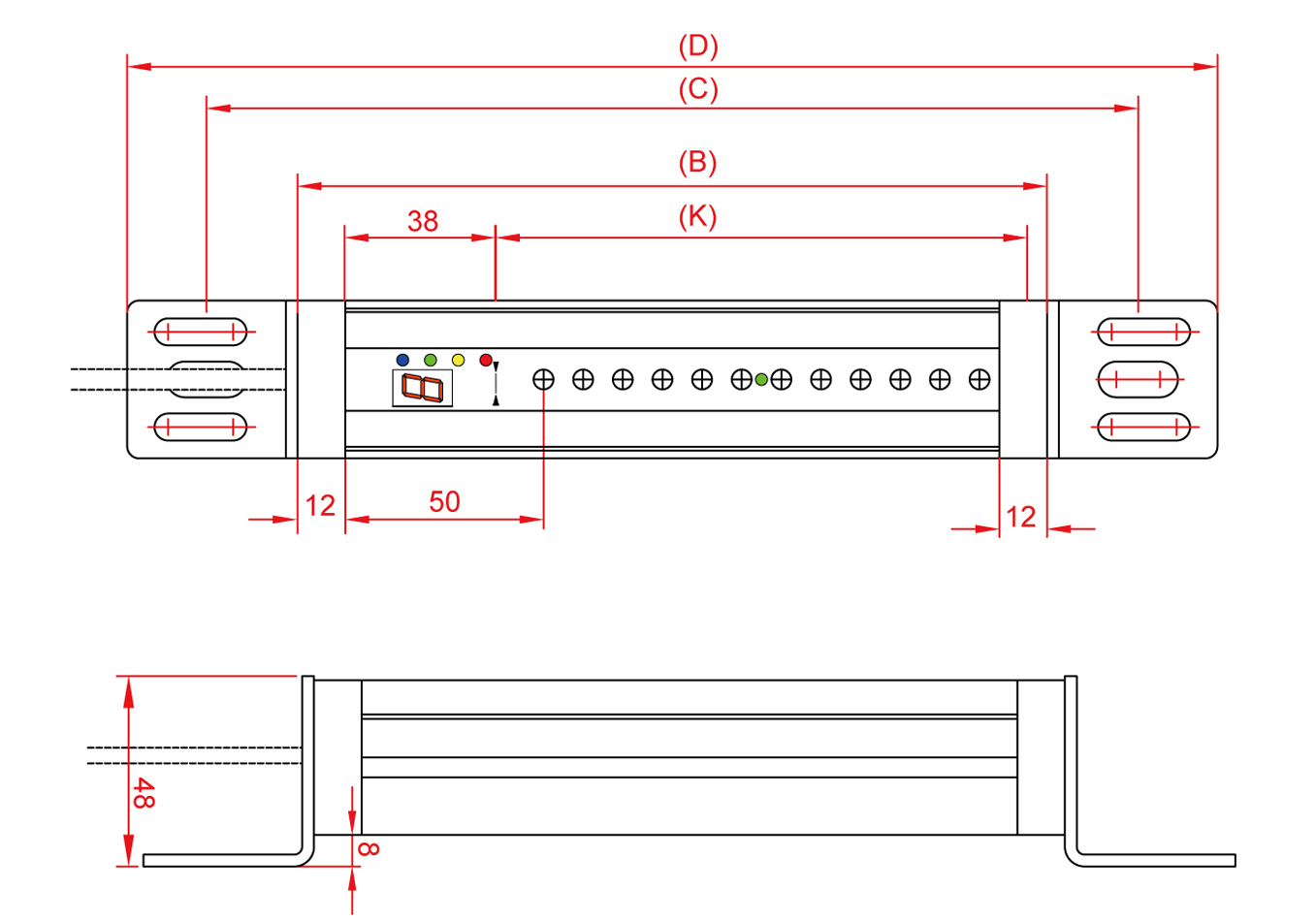

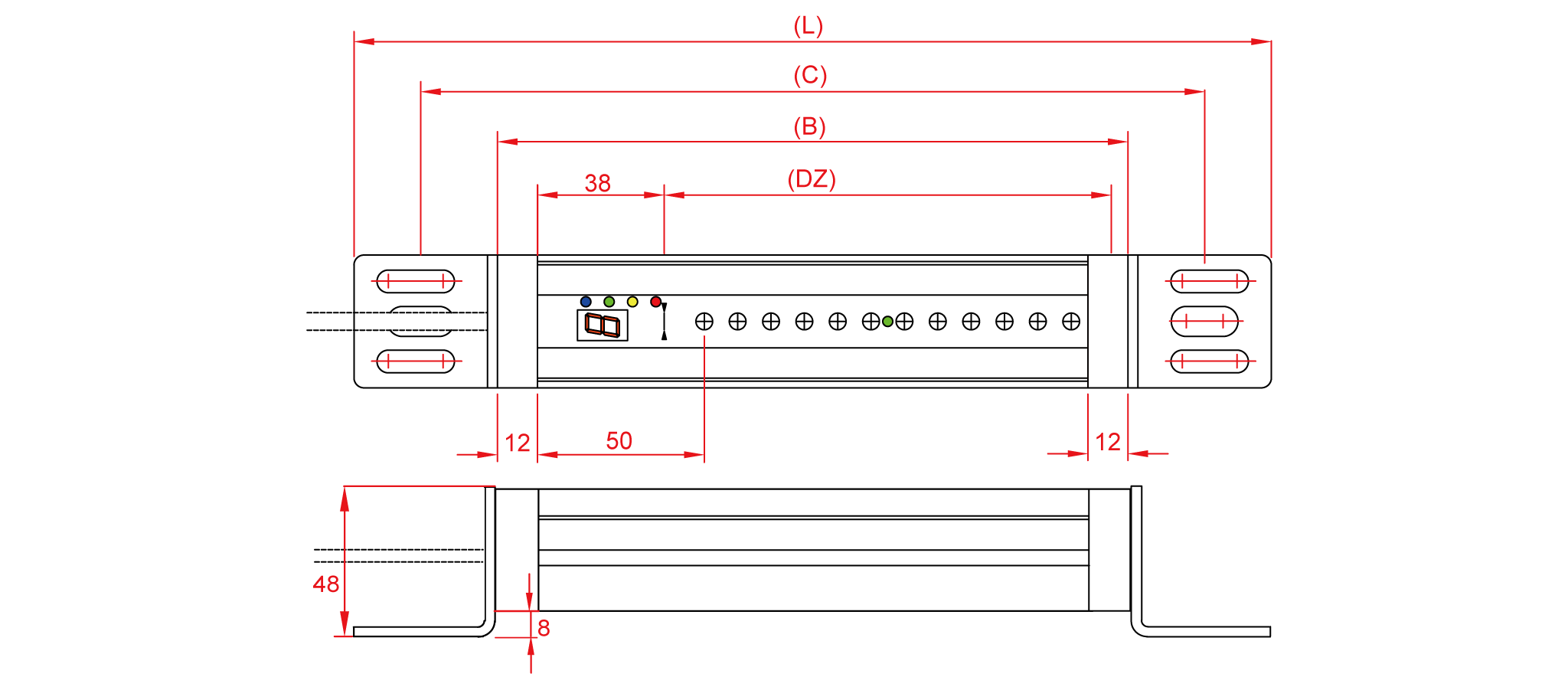

• Compact size adapted to the needs of mechanical design, the mechanical rigidity can support without additional mechanism, seismic resistance.
• Excellent safety performance, in line with various international safety standards and norms, using the latest process technology.

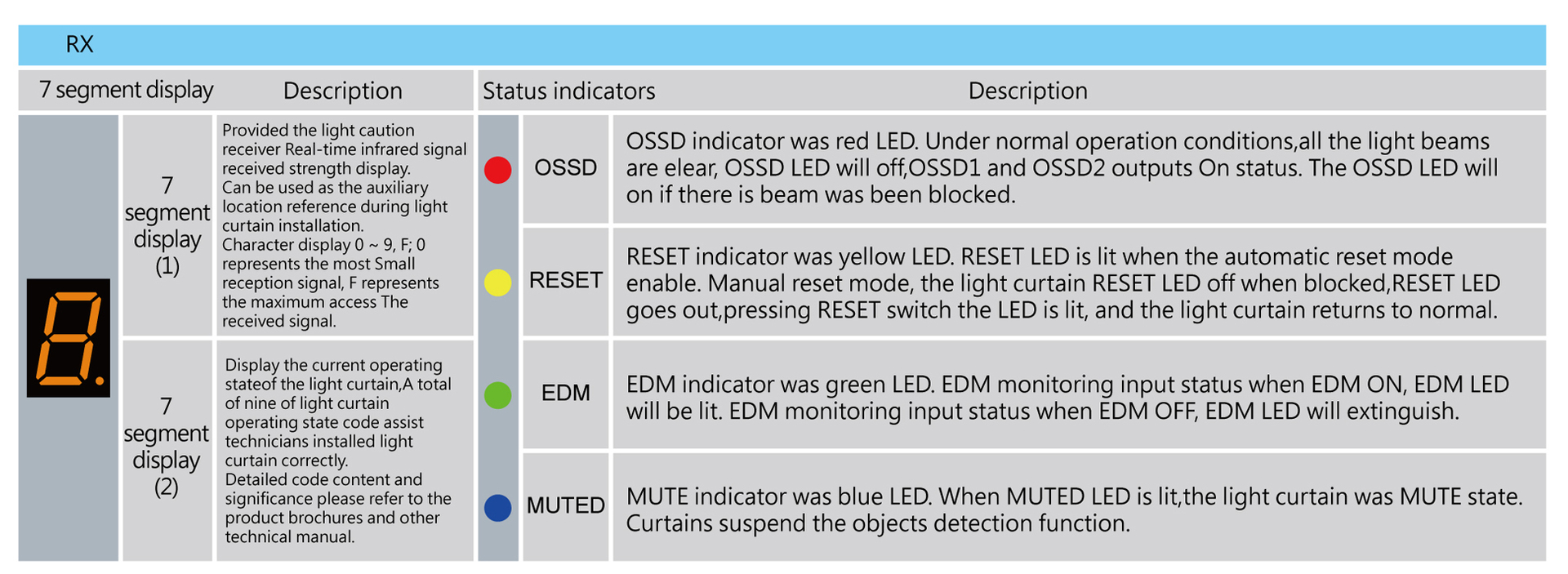

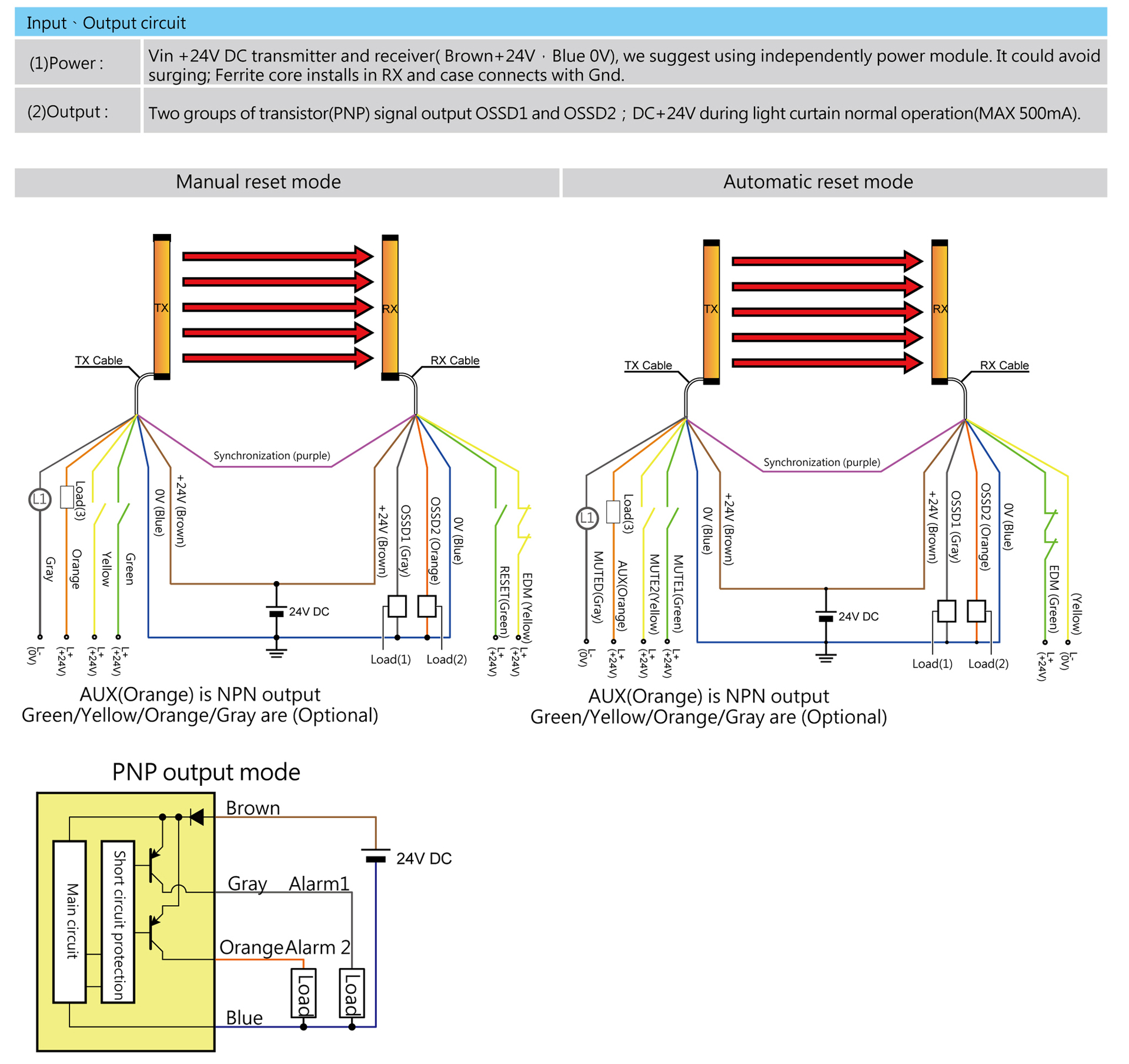

• Built-in auto-reset and manual reset function. With the received signal strength indicator light curtain seven segment display (can be used with light curtain in the vertical direction Installation location, set the font direction).
• Optionally with multifunction security control module STR4, do silent with fixed,floating shelter and other kinds of security features Capable of setting.
• Correction Indicator Number: alignment with seven segment display and indicator light,easy to overcome Type 4 light curtain Masayuki asked Title to properties for optimum light curtain being installed.
