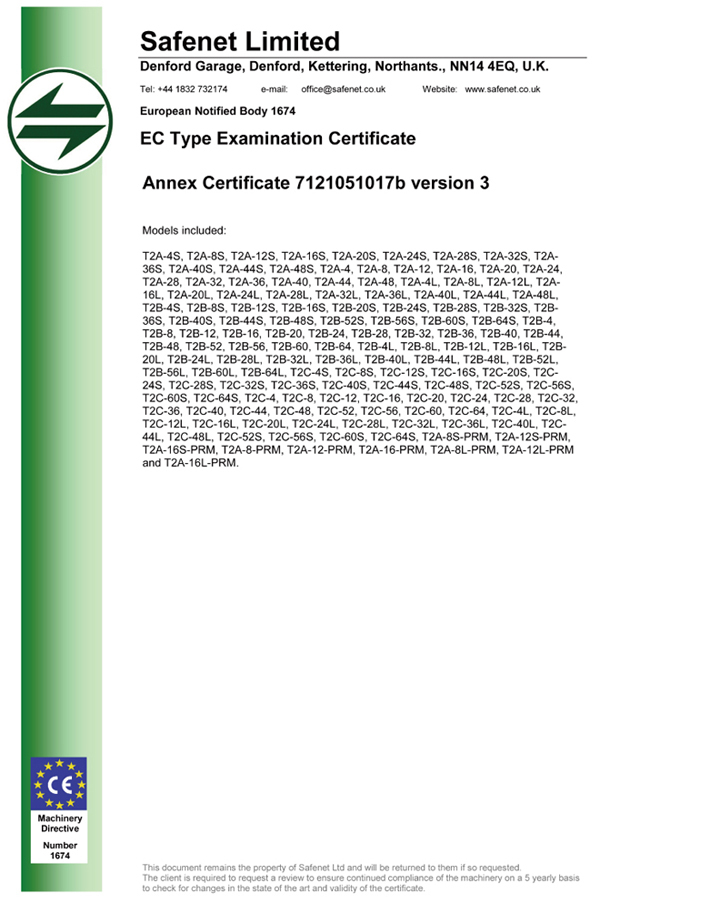

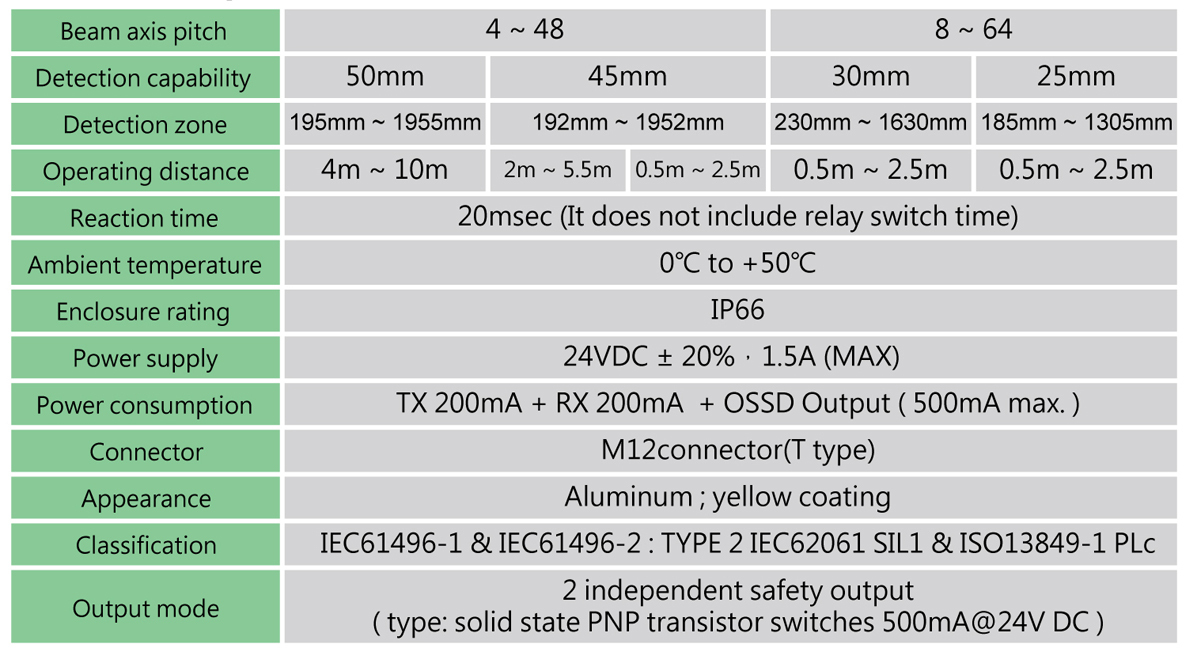

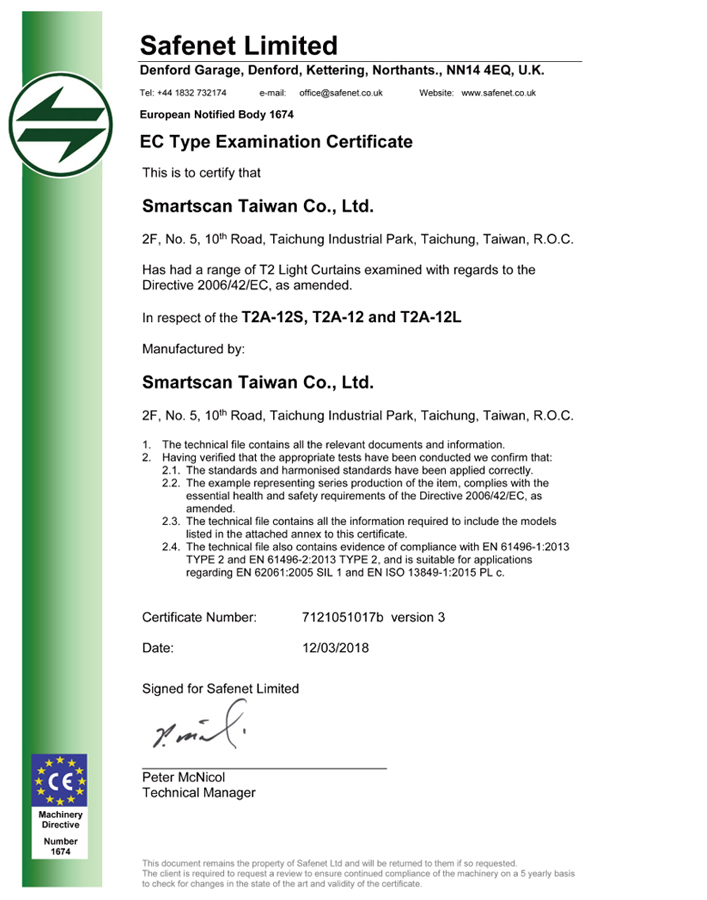

The T2 series safety light curtain optical design architecture is compact and in line with international safety standards.The light curtain as a whole also meets the safety requirements of the international safety standards IEC61496-1 and IEC61496-2 TYPE 2,and has obtained the certificate of conformity of well-known European certification bodies.

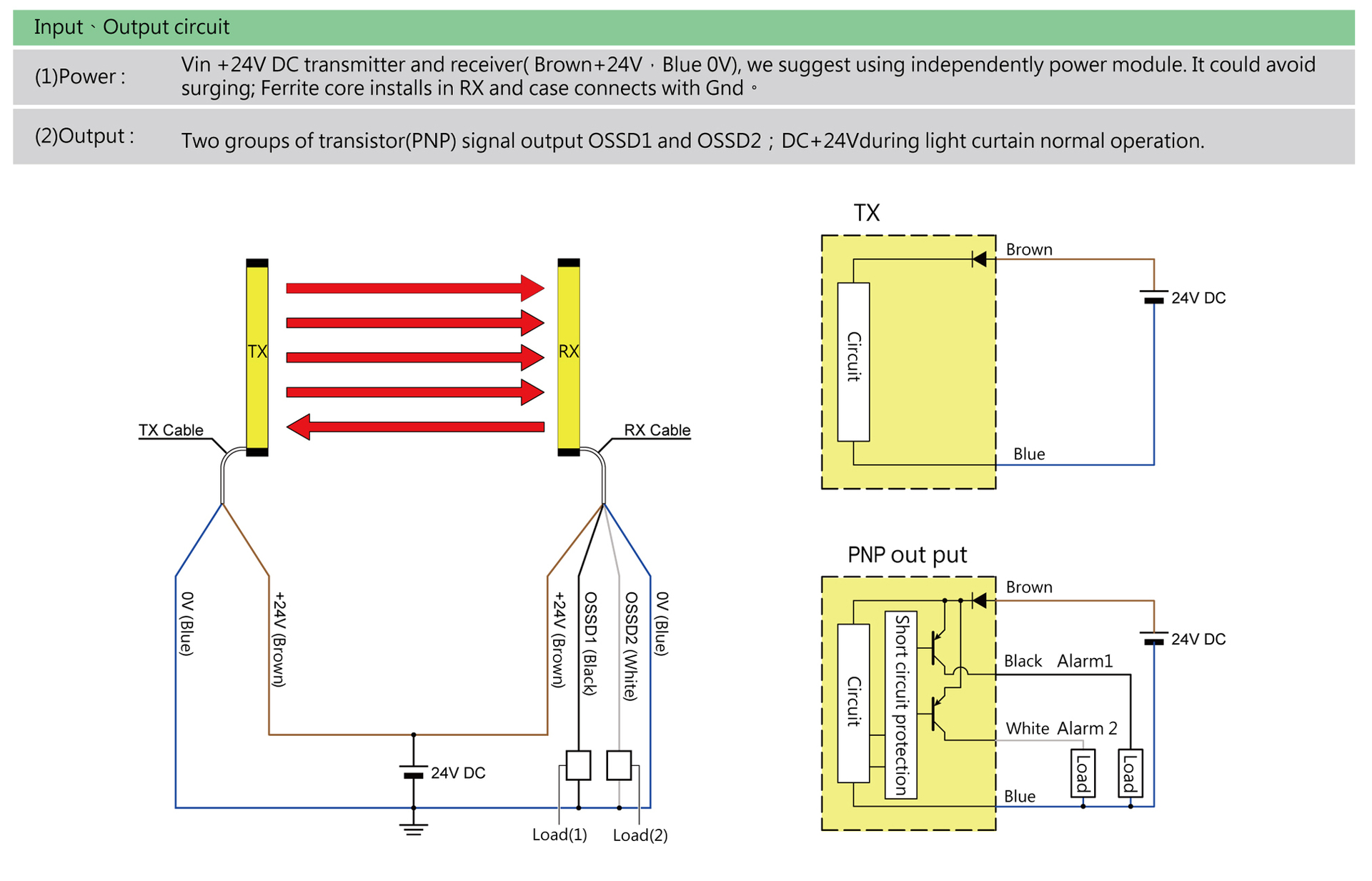

The use of non-synchronous wire wiring eliminates extra wiring,and the special optoelectronic communication method can avoid the optical crosstalk problem of the general photoelectric sensor,and achieve the stability of the photoelectric switch with line synchronous communication.

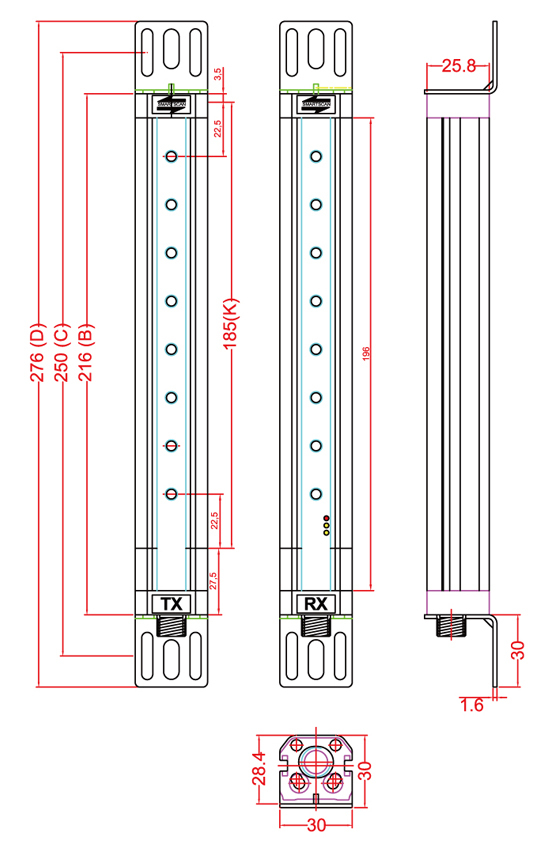

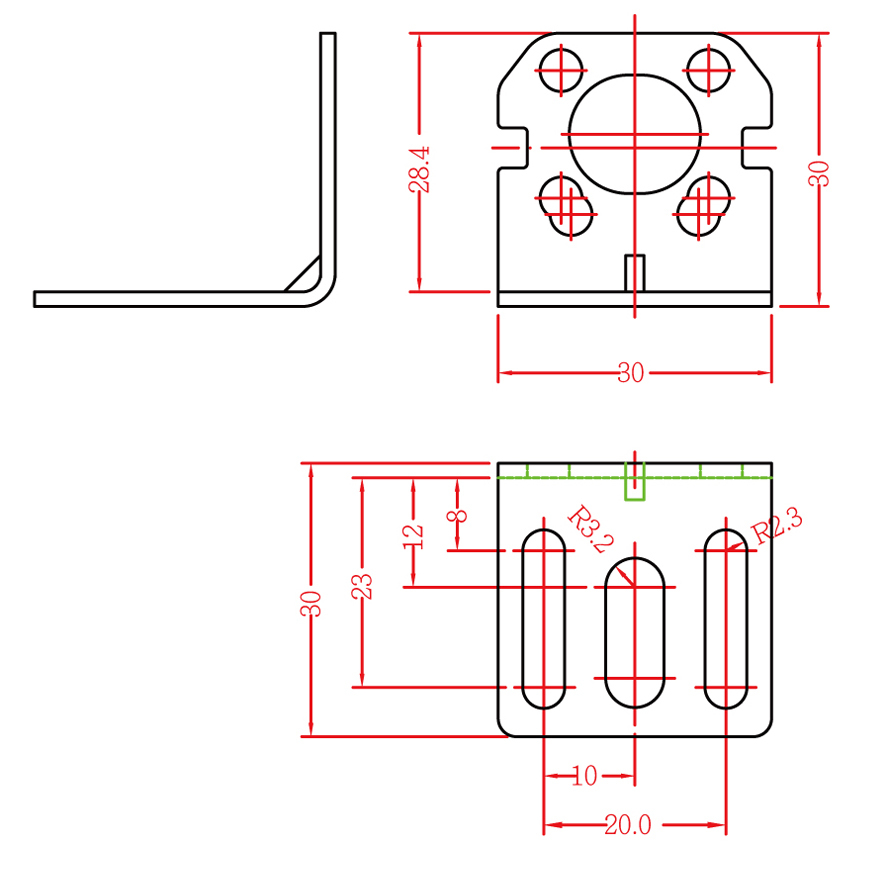

The exterior structure is small but strong;it is suitable for the overall shape design of the machine.The large light curtain still retains a strong structure,and the additional intermediate fixing method is convenient to install.
