M Series Thin Area Sensor

Smartscan M 系列光柵 安全光幕 工業用光柵 區域偵測感測器
M 系列區域偵測光柵 安全光幕 自動化防護 光柵感測器 精準偵測
Smartscan M 系列安全光幕 光柵 區域防護 感測設備 工業安全光幕
M 系列安全光柵 光幕 區域型偵測光柵 安全光幕 自動化防護 感測器
M 系列安全光幕 光柵 防護光幕 區域感測 安全自動化設備 偵測器

Introduce

M series area sensing light curtain, price concessions, stable quality,

variety of types, to meet customer needs, is the most suitable for regional
use in the detection, protection, inspection and other diversified sensing. Instruction LVD requirements, with CE marking.

Property

  •    Number of beams 25mm (Non-extendable), 10mm, 20mm, 40mm.
  •    Length Detection 100mm ~ 940mm, various type to meet customer needs.
  •    Possess NPN and PNP wiring method to meet customer needs.(MA)
  •    Light sync infinite frequency, possess FREQA and FREQB, FREQC, FREQD multi frequency to meet customer needs(MA1).
  •    The length of the reference distance can be determined by the switch or wiring to meet customer needs.
  •    Numerous clear indicator lights, with selectable constant or flashing display modes via a switch.
  •    Quality and stability, price concessions.
  •    Compact design, Aluminum extrusion structure.

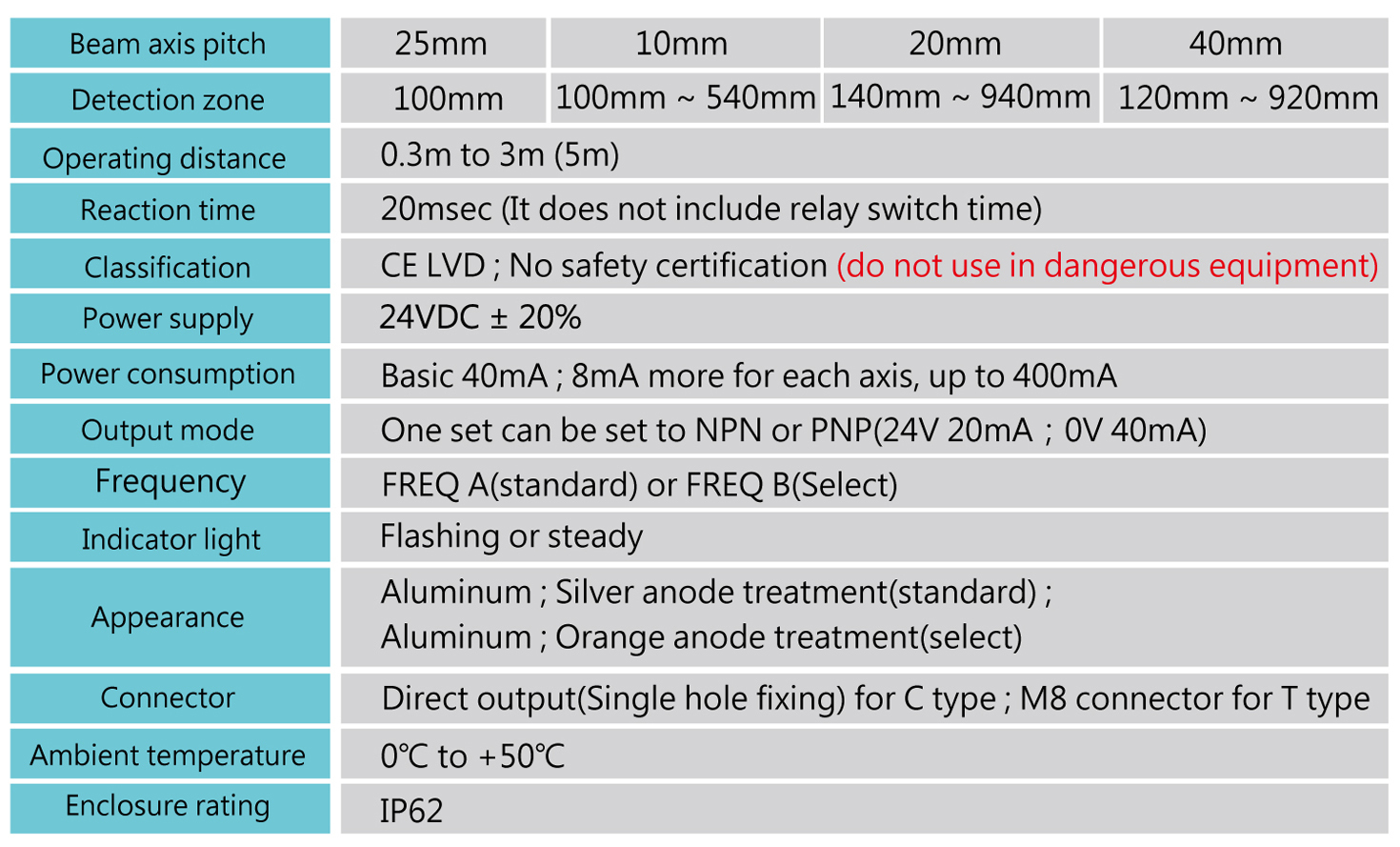

General Specifications

Optical Axis Pitch
25mm
20mm
40mm
Number of beam
5
8~48
4~24
Detection zone
100mm
140mm~940mm
120mm~920mm
Operating distance
0.5m to 3m
Response Time
20msec(Exclude relay switch time)
Classification
CE LVD ; No safety notified (do not use in dangerous equipment)
Power supply
24VDC±20%
Power consumption
Basic 40mA ; 8mA more for each axis, up to 400mA
Output mode
One set can be set to NPN or PNP(24V 20mA；0V 40mA)
Frequency
FREQ A(standard) or FREQ B,FREQ C,FREQ D (Select)
Indicator light
Flashing or steady
Appearance
Aluminum ;  Silver anode treatment(standard) 、Yellow anode treatment(select)
Connector

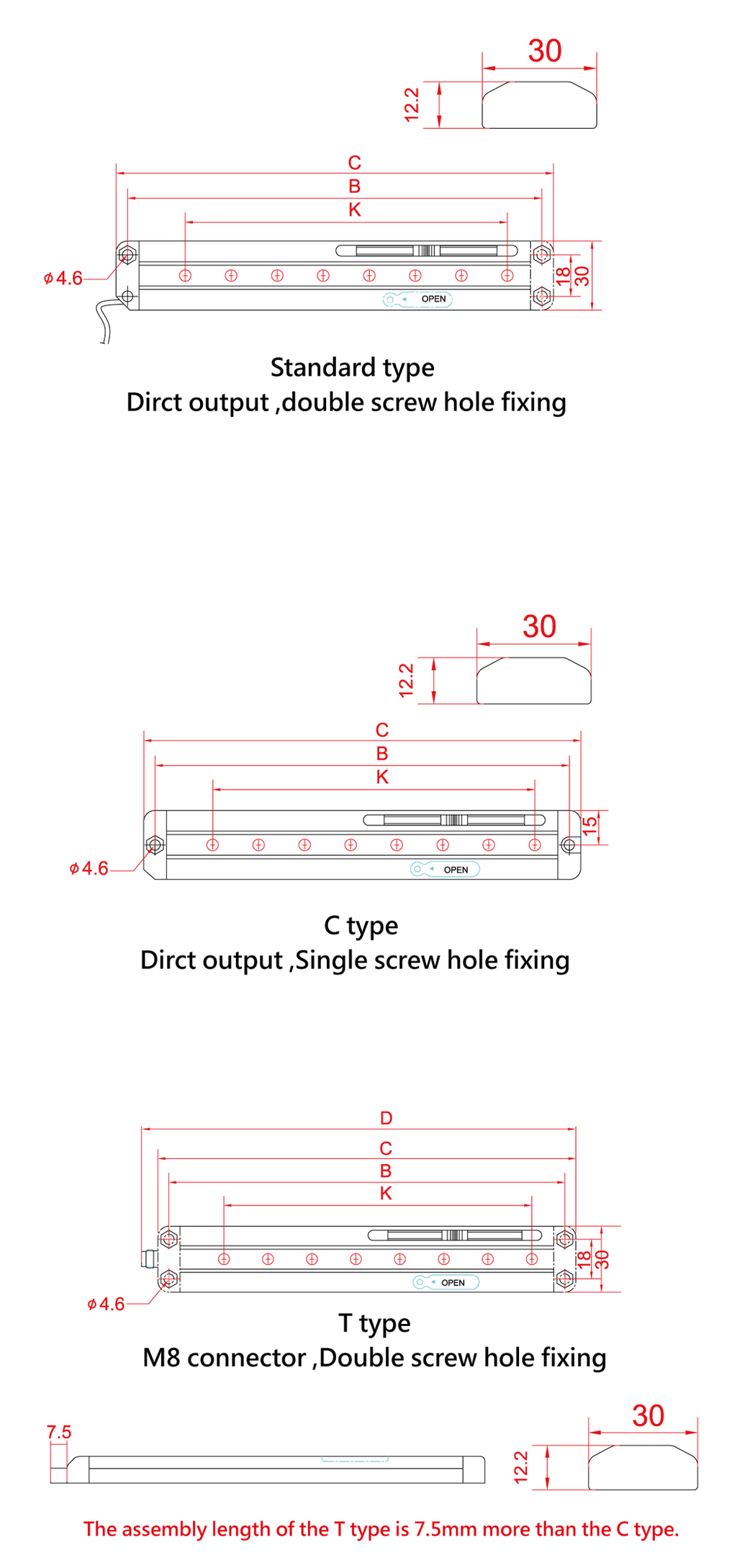

Direct output(Single hole fixing) for C type ; M8 connector for T type
Ambient temperature
0℃ to +50℃
Enclosure rating
IP62( Ingress Protection )Ratings

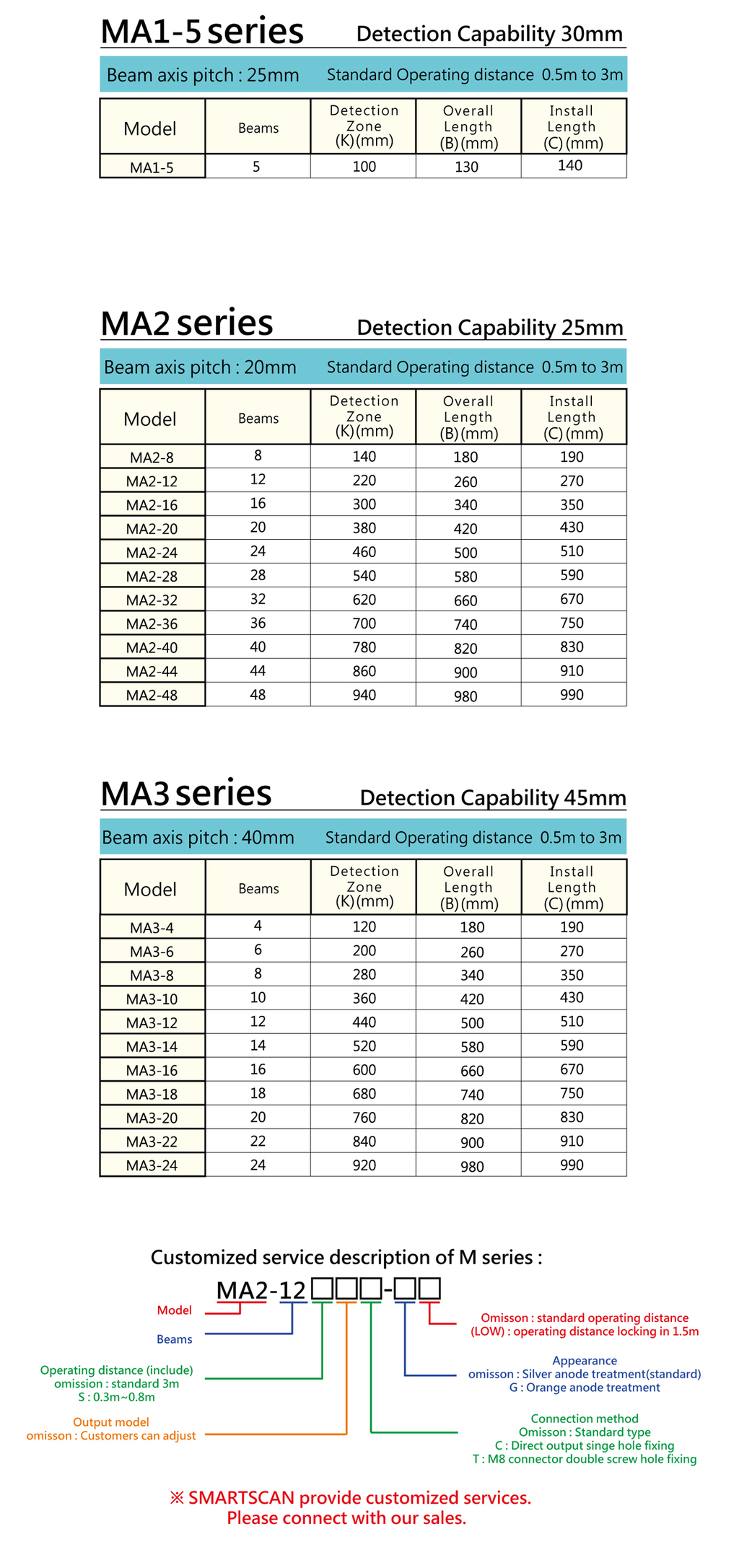

MA1-5 Series　Detection Capability 30mm

Optical Axis Pitch :25mm　　Standard Operating distance:0.5m~ 3m
Model
Beams
Detection Zone(DZ)
(mm)
Overall Length(B)
(mm)
Install Length(C)
(mm)
MA1-5
5
100
130
140

MA2 Series　Detection Capability 25mm

Optical Axis Pitch :20mm　　　　Standard Operating distance:0.5m~ 3m
Model
Beams
Detection Zone
(DZ) (mm)
Overall Length
(B) (mm)
Install Length
(C) (mm)
MA2-8
8
140
180
190
MA2-12
12
220
260
270
MA2-16
16
300
340
350
MA2-20
20
380
420
430
MA2-24
24
460
500
510
MA2-28
28
540
580
590
MA2-32
32
620
660
670
MA2-36
36
700
740
750
MA2-40
40
780
820
830
MA2-44
44
860
900
910
MA2-48
48
940
980
990

MA3 Series　Detection Capability 45mm

Optical Axis Pitch:40mm　　　　Standard Operating distance:0.5m~ 3m
Model
Beams
Detection Zone
(DZ) (mm)
Overall Length
(B) (mm)
Install Length
(C) (mm)
MA3-4
4
120
180
190
MA3-6
6
200
260
270
MA3-8
8
280
340
350
MA3-10
10
360
420
430
MA3-12
12
440
500
510
MA3-14
14
520
580
590
MA3-16
16
600
660
670
MA3-18
18
680
740
750
MA3-20
20
760
820
830
MA3-22
22
840
900
910
MA3-24
24
920
980
990

MB1-5 Series　Detection Capability 30mm

Optical Axis Pitch:25mm　　　Standard Operating distance:0.5m~ 3m
Model
Beams
Detection Zone
(DZ) (mm)
Overall Length
(B) (mm)
Install Length
(C) (mm)
MB1-5
5
100
130
140

MB2 Series　Detection Capability 25mm

Optical Axis Pitch:20mm　　　　Standard Operating distance:0.5m~ 3m
Model
Beams
Detection Zone
(DZ) (mm)
Overall Length
(B) (mm)
Install Length
(C) (mm)
MB2-8
8
140
180
190
MB2-12
12
220
260
270
MB2-16
16
300
340
350
MB2-20
20
380
420
430
MB2-24
24
460
500
510
MB2-28
28
540
580
590
MB2-32
32
620
660
670
MB2-36
36
700
740
750
MB2-40
40
780
820
830
MB2-44
44
860
900
910
MB2-48
48
940
980
990

MB3 Series　Detection Capability 45MM

Optical Axis Pitch:40mm　　 Standard Operating distance:0.5m~ 3m
Model
Beams
Detection Zone
(DZ) (mm)
Overall Length
(B) (mm)
Install Length
(C) (mm)
MB3-4
4
120
180
190
MB3-6
6
200
260
270
MB3-8
8
280
340
350
MB3-10
10
360
420
430
MB3-12
12
440
500
510
MB3-14
14
520
580
590
MB3-16
16
600
660
670
MB3-18
18
680
740
750
MB3-20
20
760
820
830
MB3-22
22
840
900
910
MB3-24
24
920
980
990

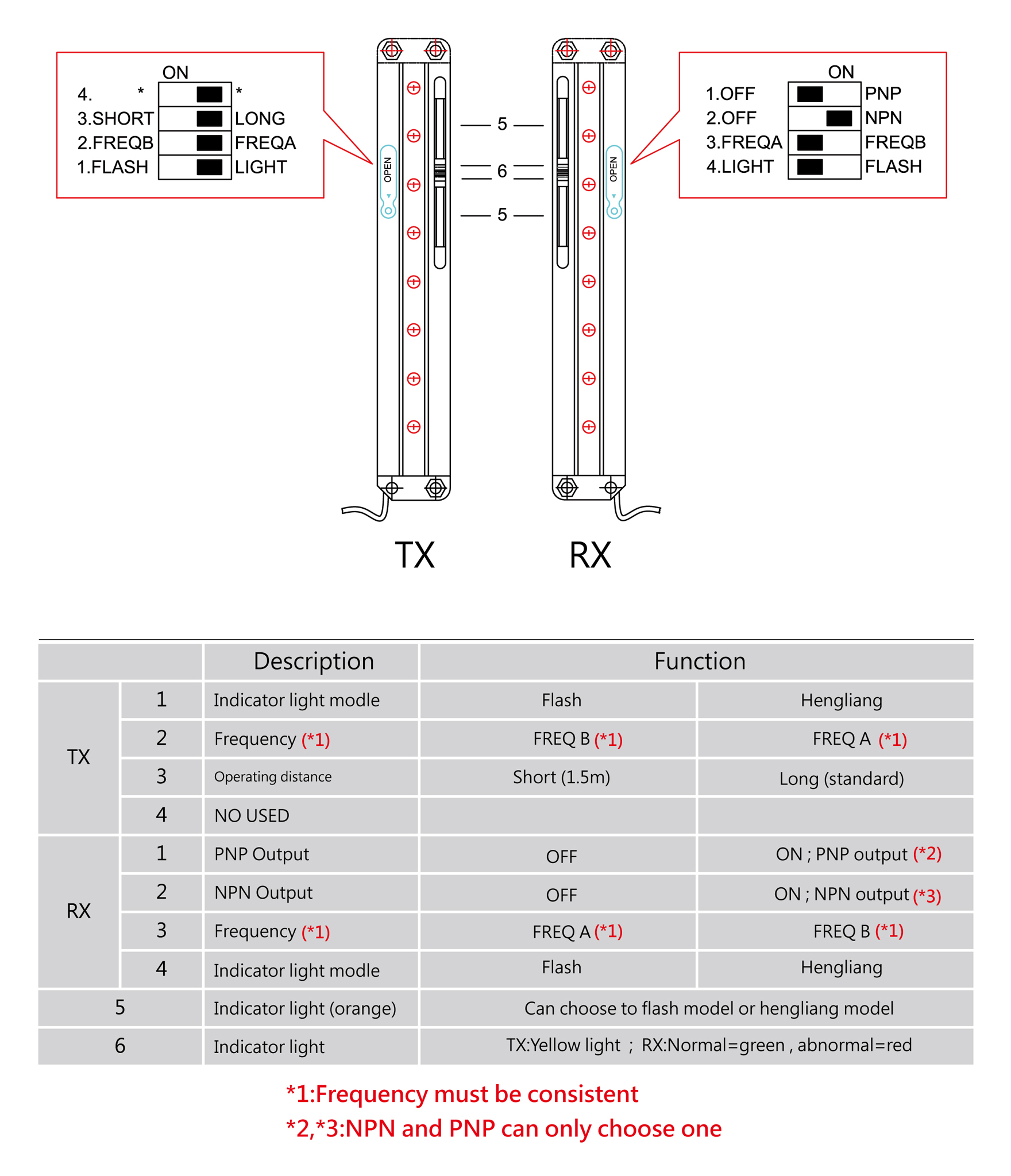

MA2 Series Set up


Caption
Description

TX
1
Emission frequency selection
2
3
Range selection
SHORT range 0.5-1.5m
LONG range 1-3m
4
Job indicator operation selection
LIGHT Large Work Light always on
FLASH Large Work Light blinking
5
Frequency LED

Refer to the illustraion.
6

Job indicator(Orange)

Light up / flash is select by the operation mode switch on the emitter.

RX
7
Frequency LED

Refer to the illustraion.
8

Job indicator(Orange)

Light up / flash is select by the operation mode switch on the receiver.
9

Job indicator operation selection
FLASH Large Work Light blinking
LIGHT Large Work Light always on
10

Output selection
NPN Output
PNP Output
11
Receive frequency selection
12

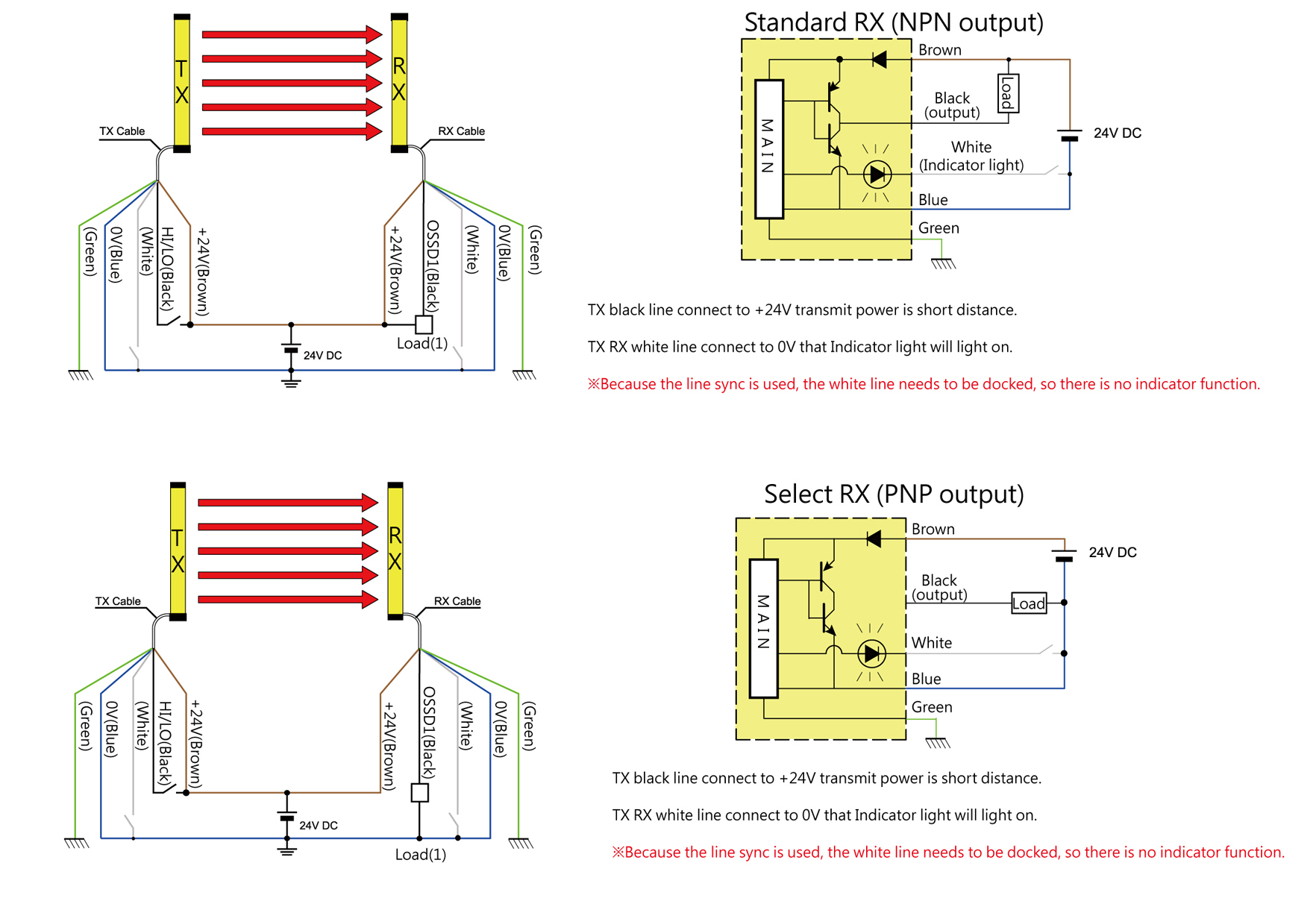

Electric Connection

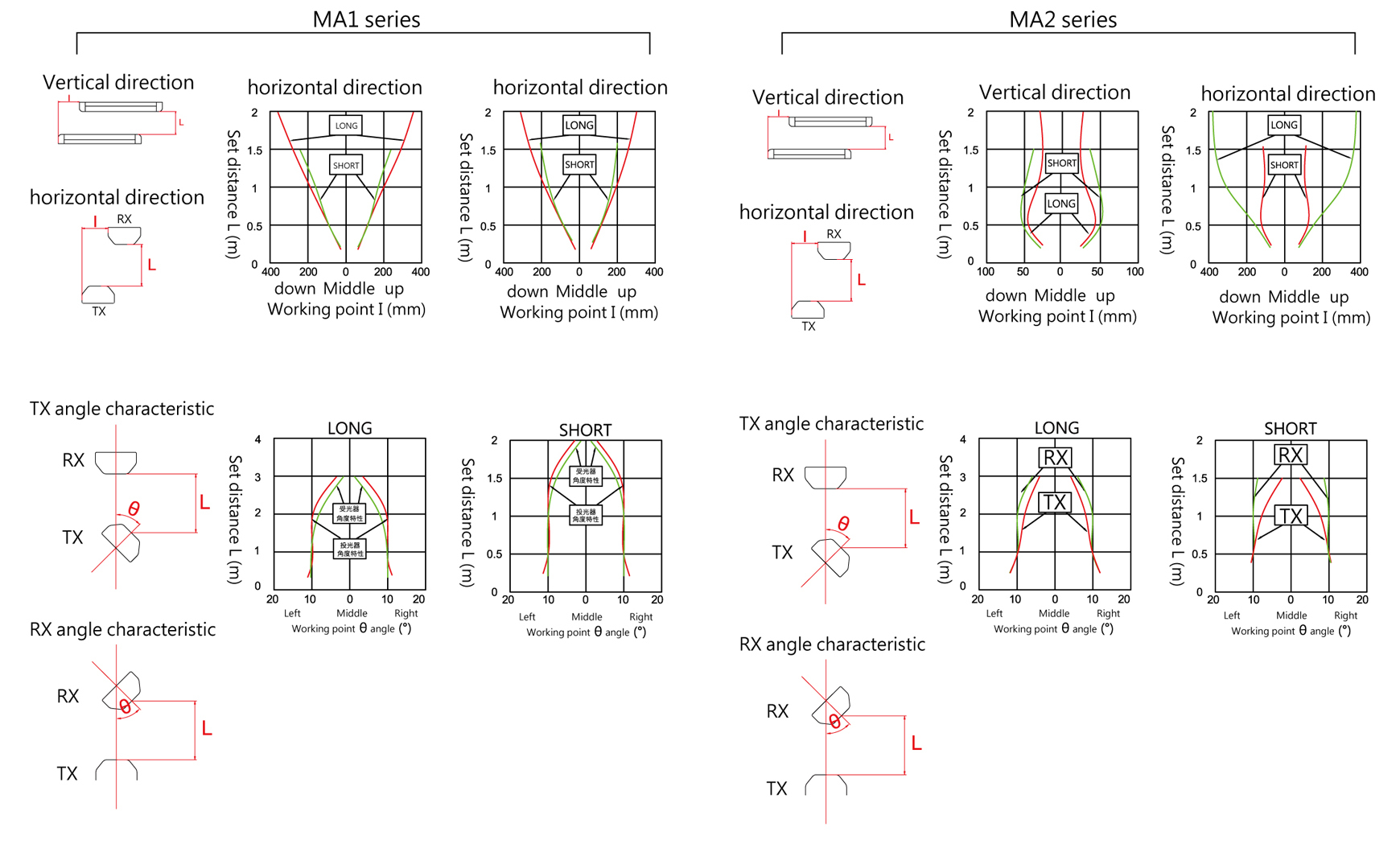

Detection Characteristics Diagram
