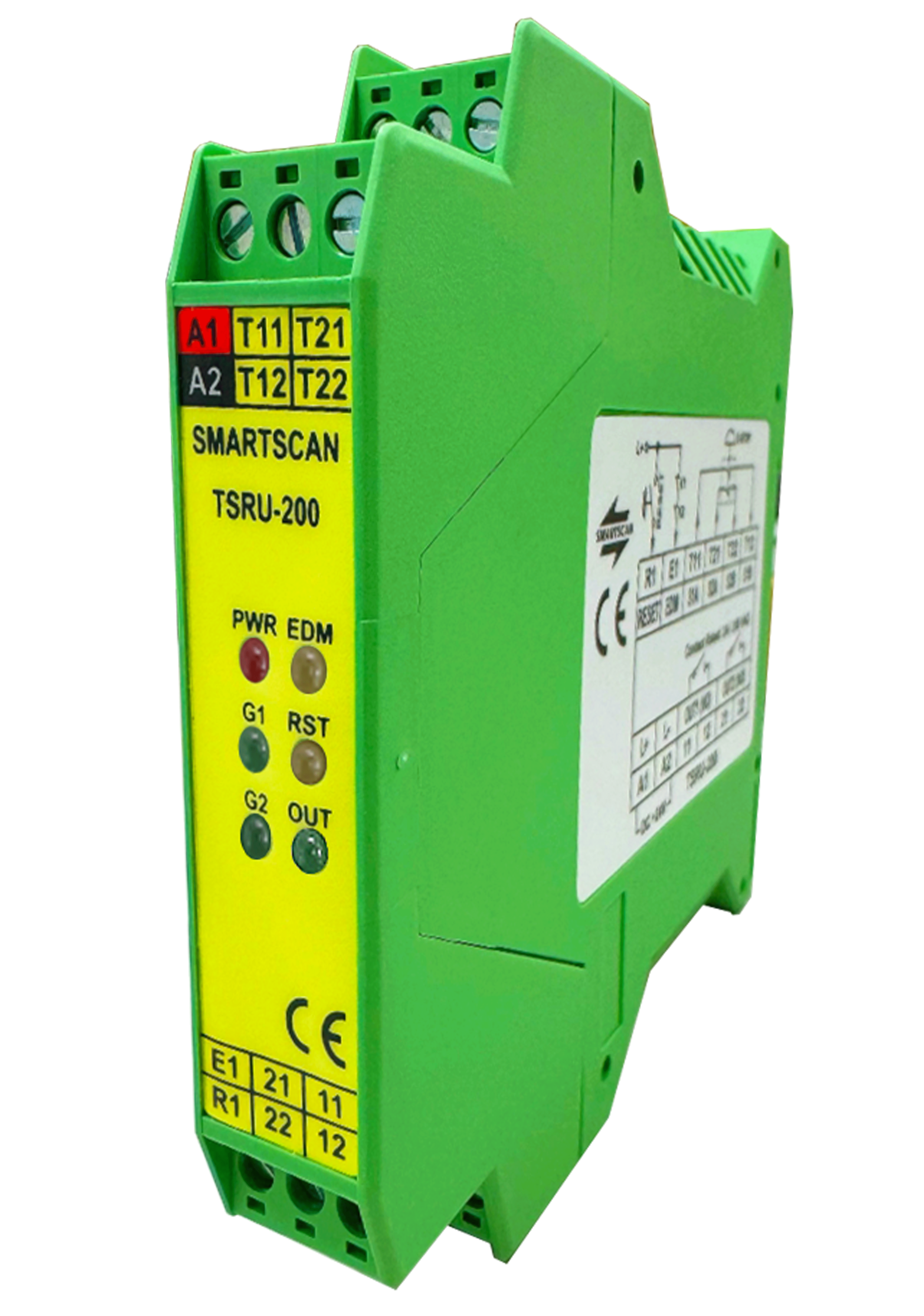

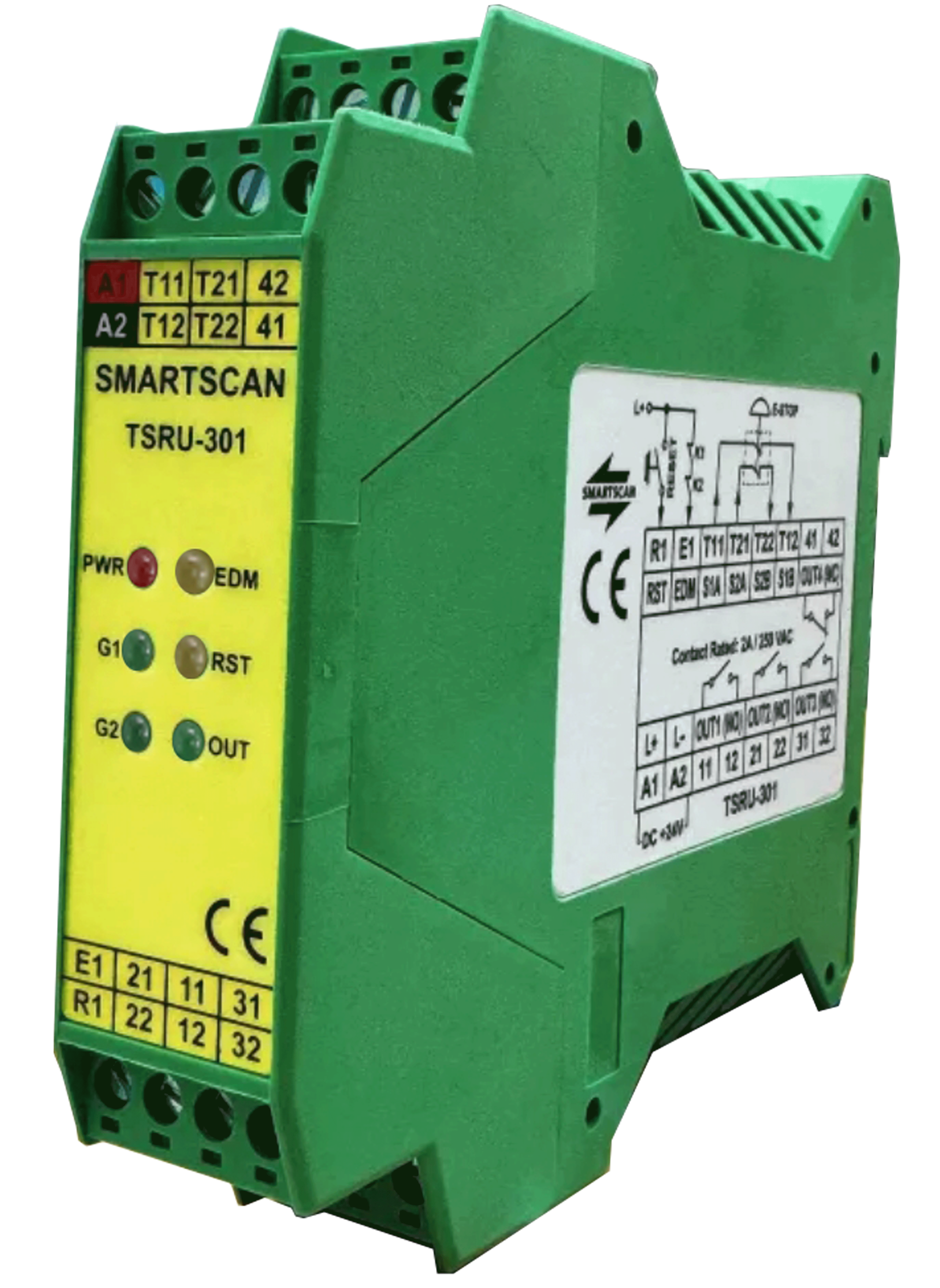

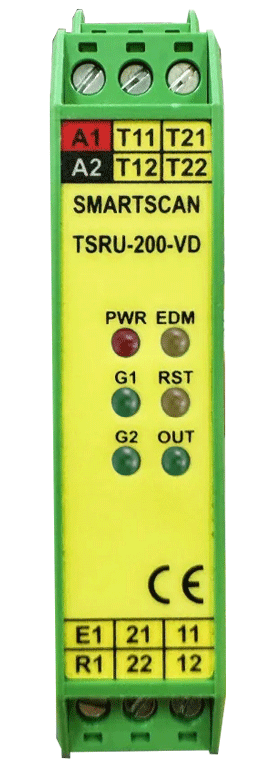

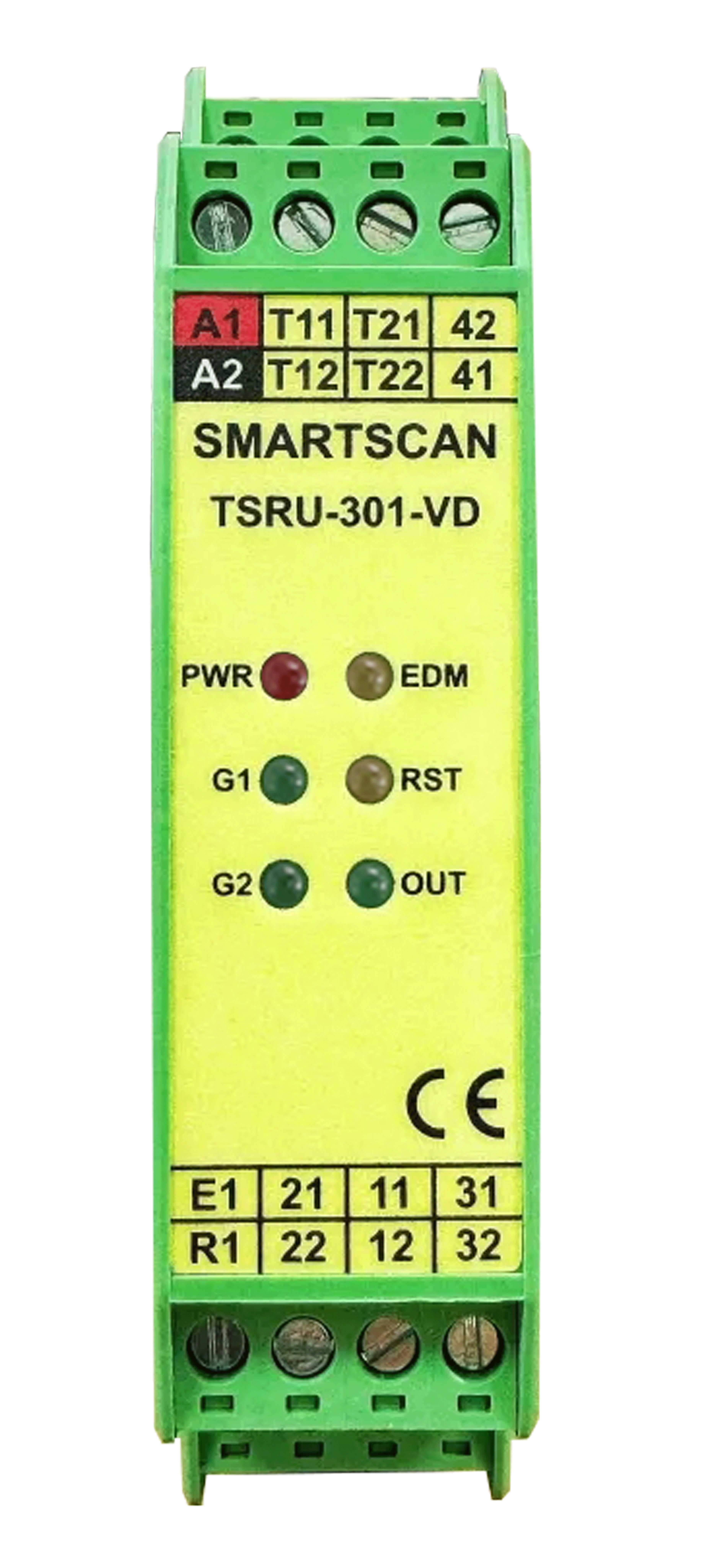

TSRU Safety relay module

Characteristics

  •    IEC 62061(SIL3)、EN ISO 13849-1(PL e) CATEGORY 4 .
  •    Thin shell, DC 24V, dual emergency stop, various output contacts.
  •    Automatic reset and manual reset mode.
  •    Suitable for emergency stop switches, safety bolts, safety light curtains, etc.

Normal Series

Download TSRU-120 Catalogue

Download TSRU-131 Catalogue

Download TSRU-200 Catalogue

Download TSRU-200-VD Catalogue

Download TSRU-301 Catalogue

Download TSRU-301-VD Catalogue

D Series

Download TSRU-D200 Catalogue

Download TSRU-D200-VD Catalogue

Download TSRU-D301 Catalogue

Download TSRU-D301-VD Catalogue

Other

Support and downloads

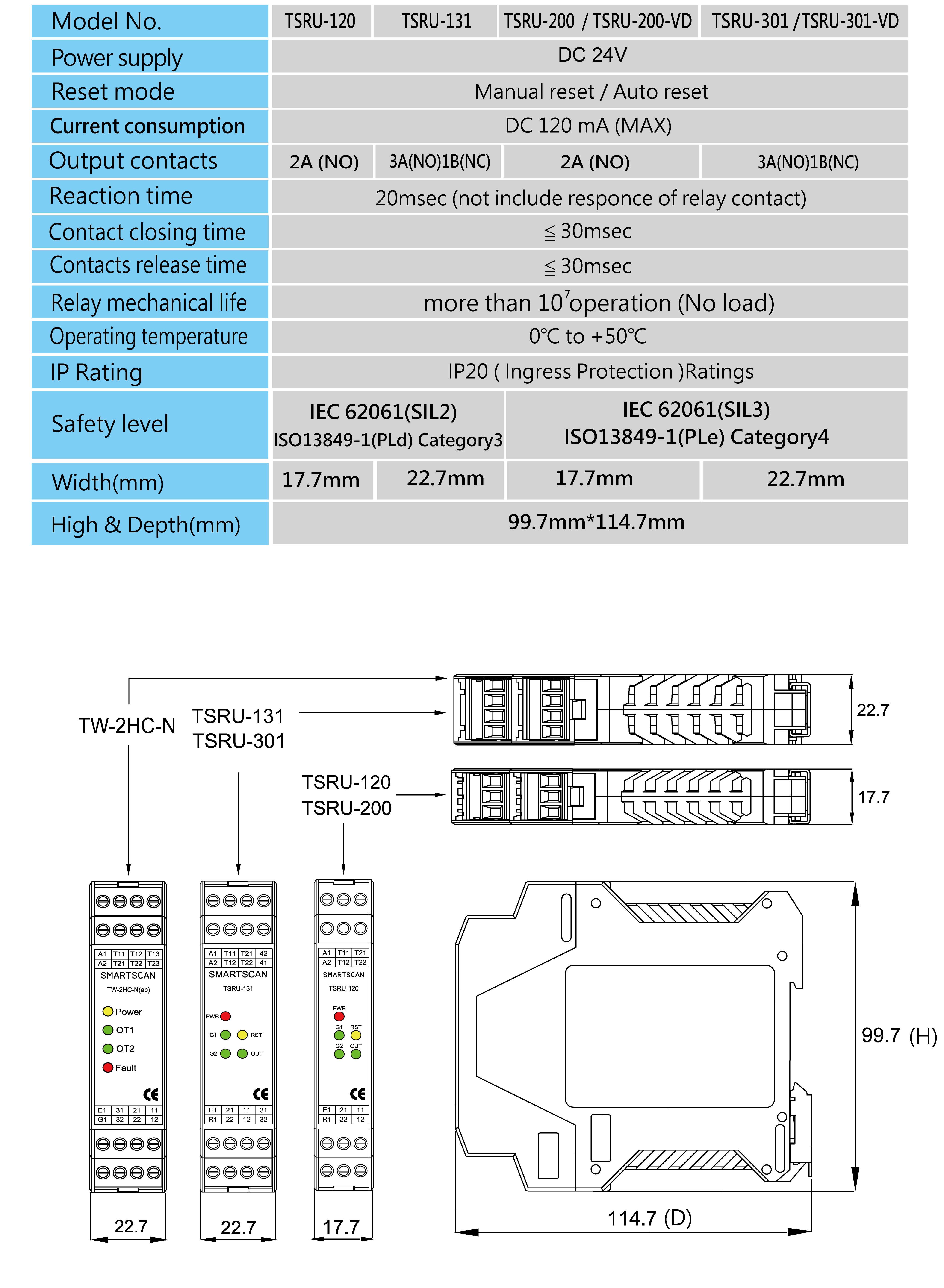

General Specifications

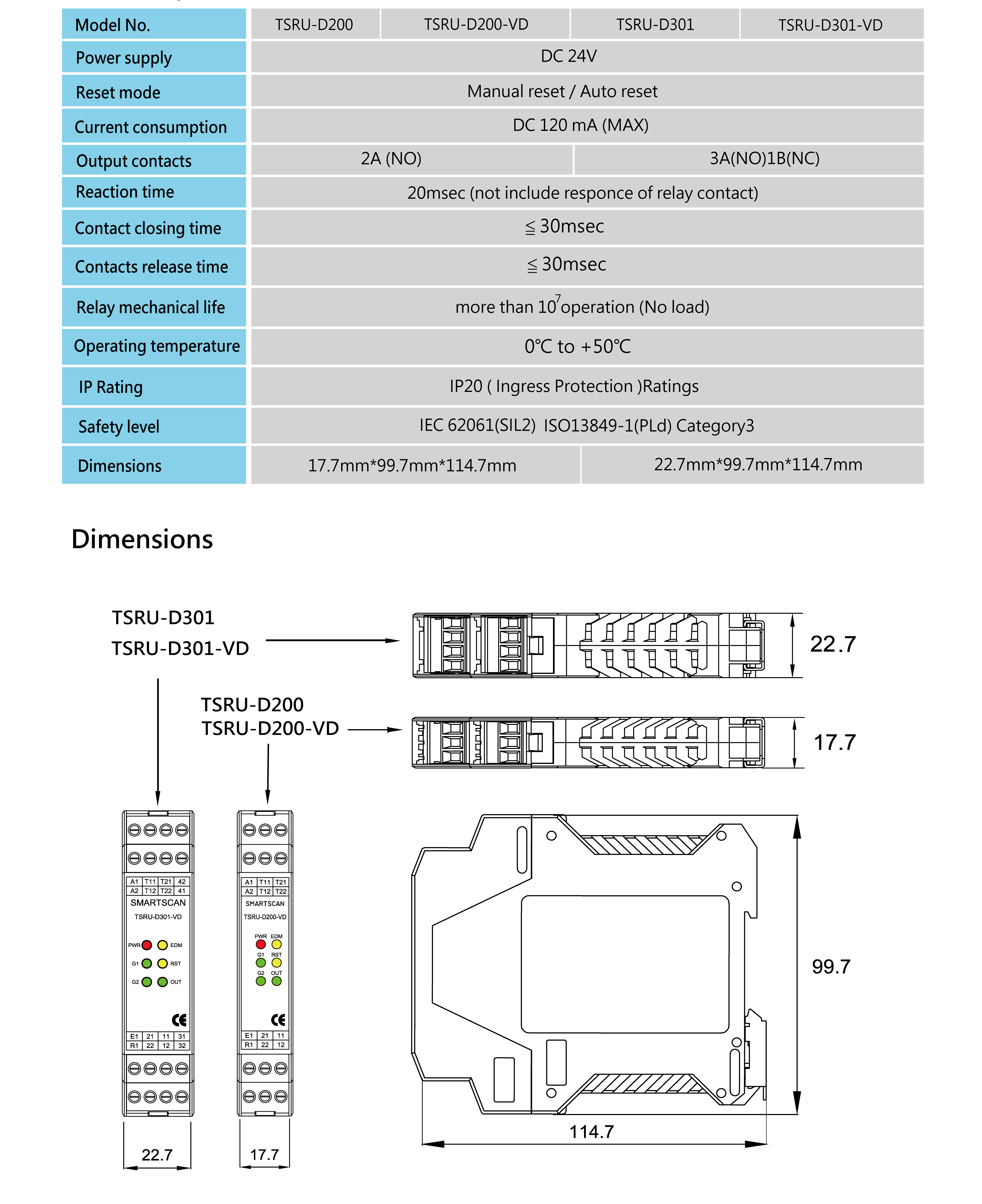

TSRU-D Series

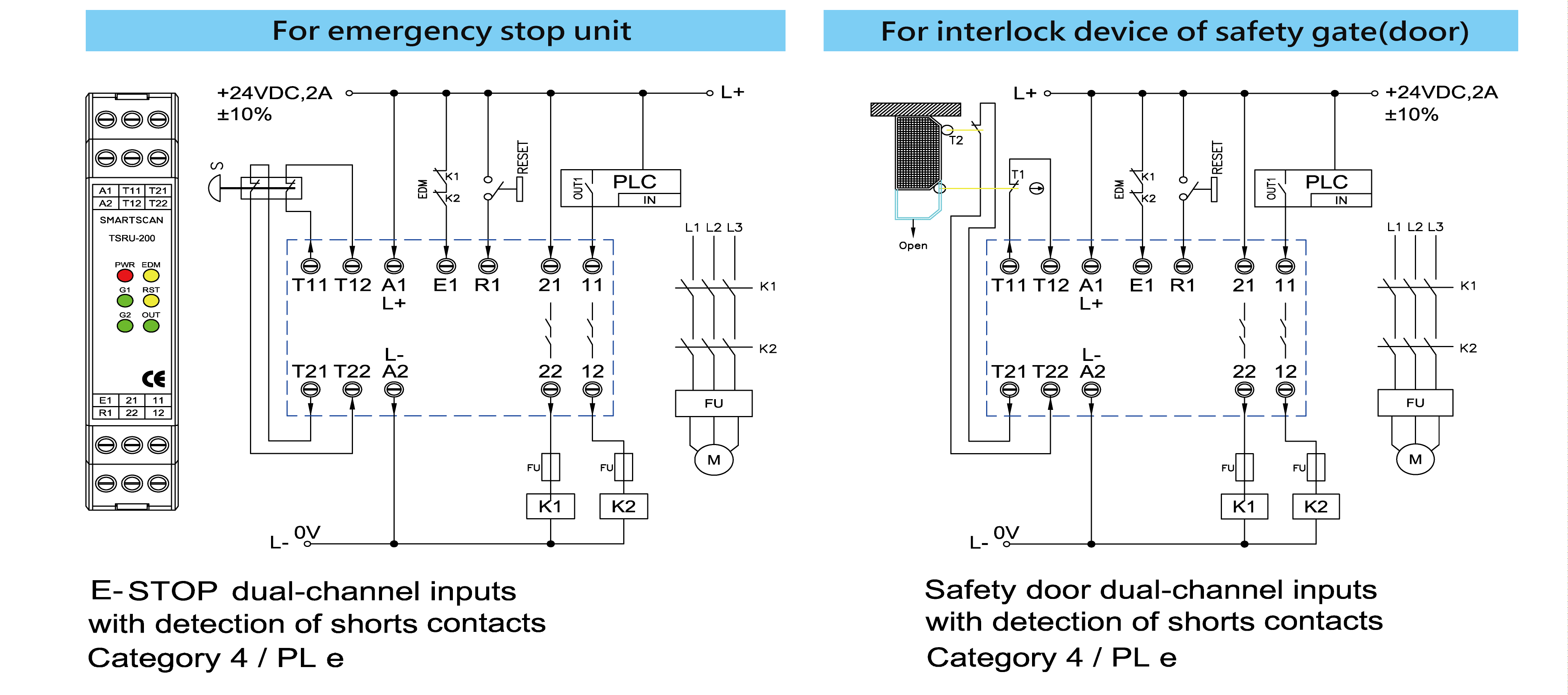

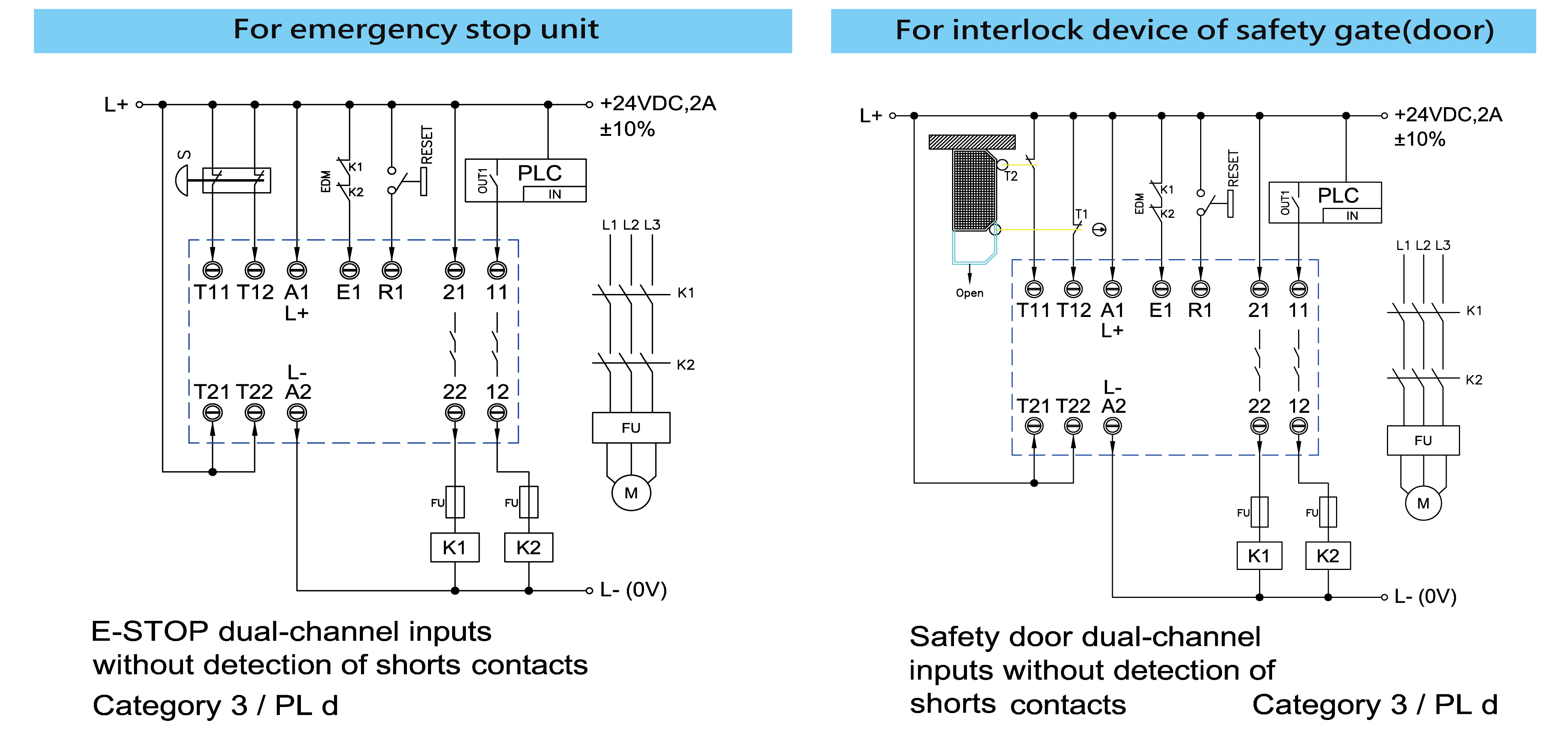

TSRU-200 Recommended wiring diagram

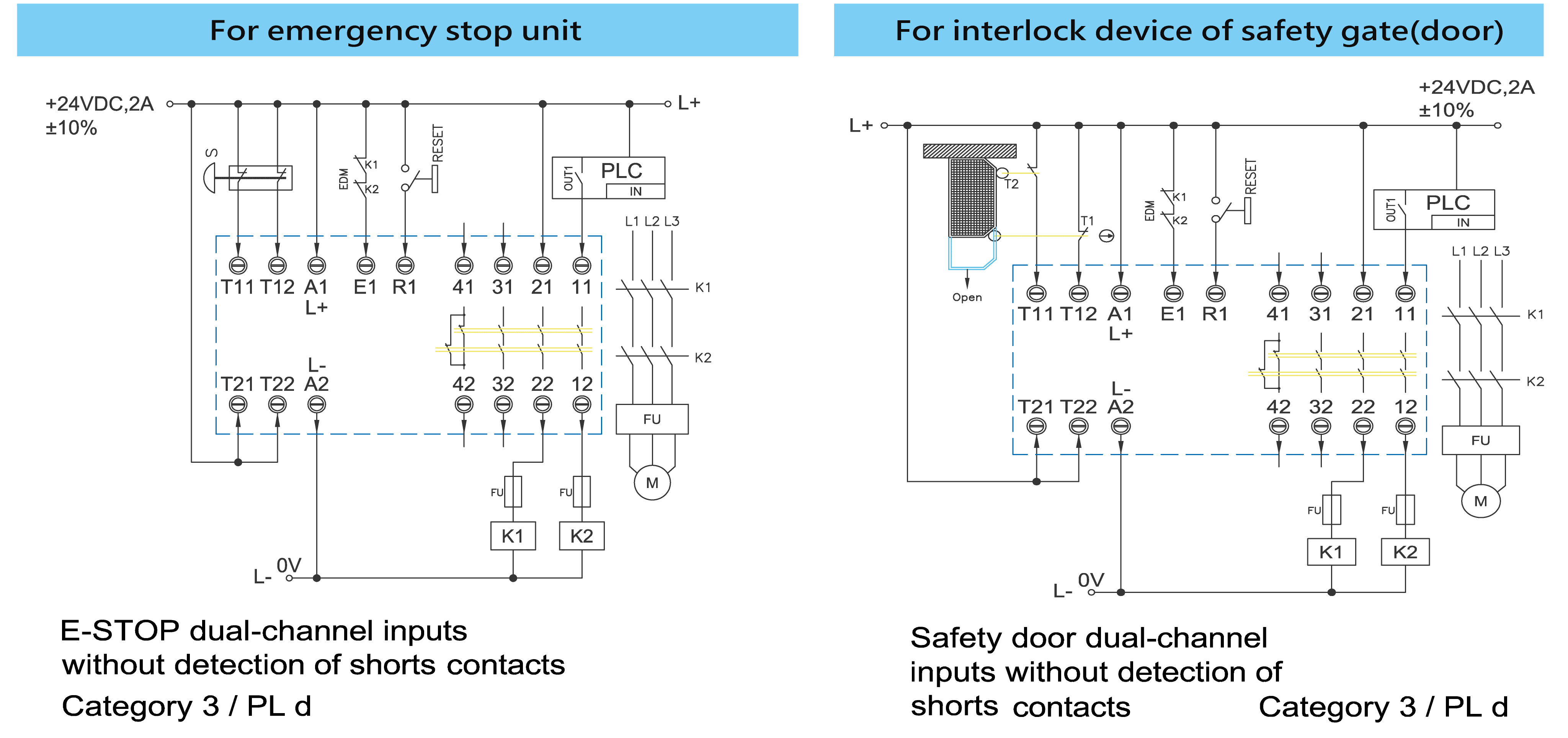

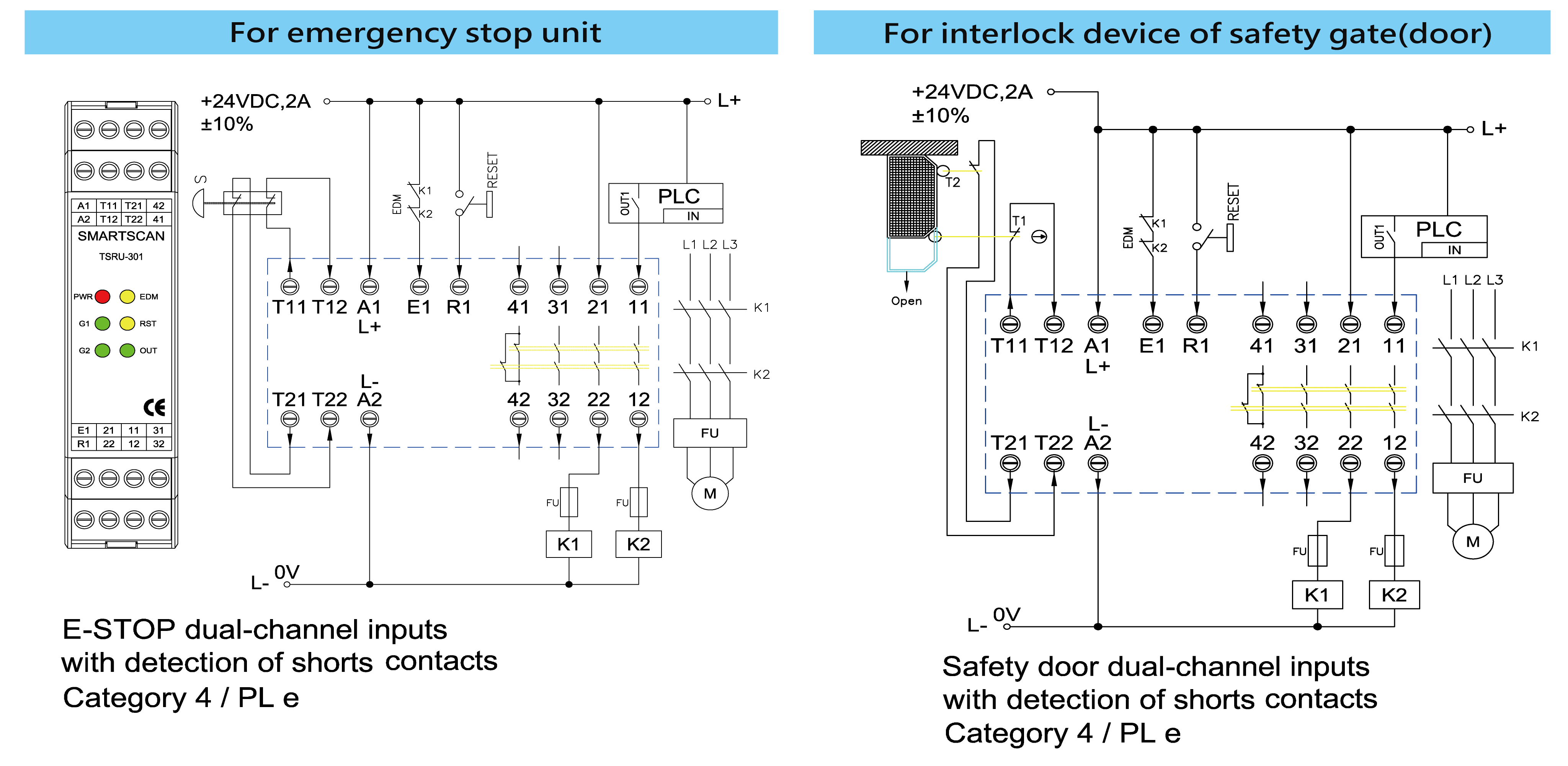

TSRU-301 Recommended wiring diagram

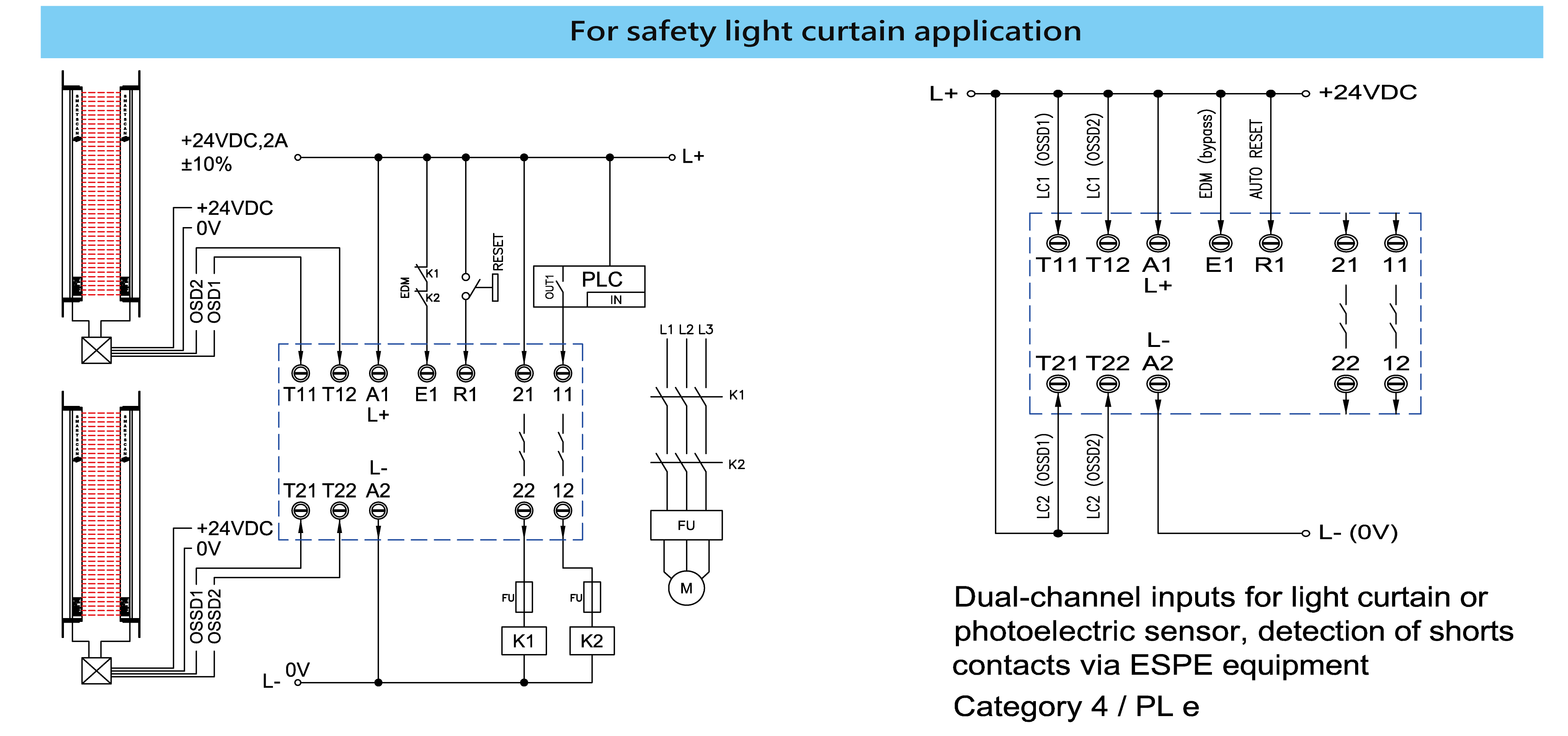

TSRU-200-VD Recommended wiring diagram

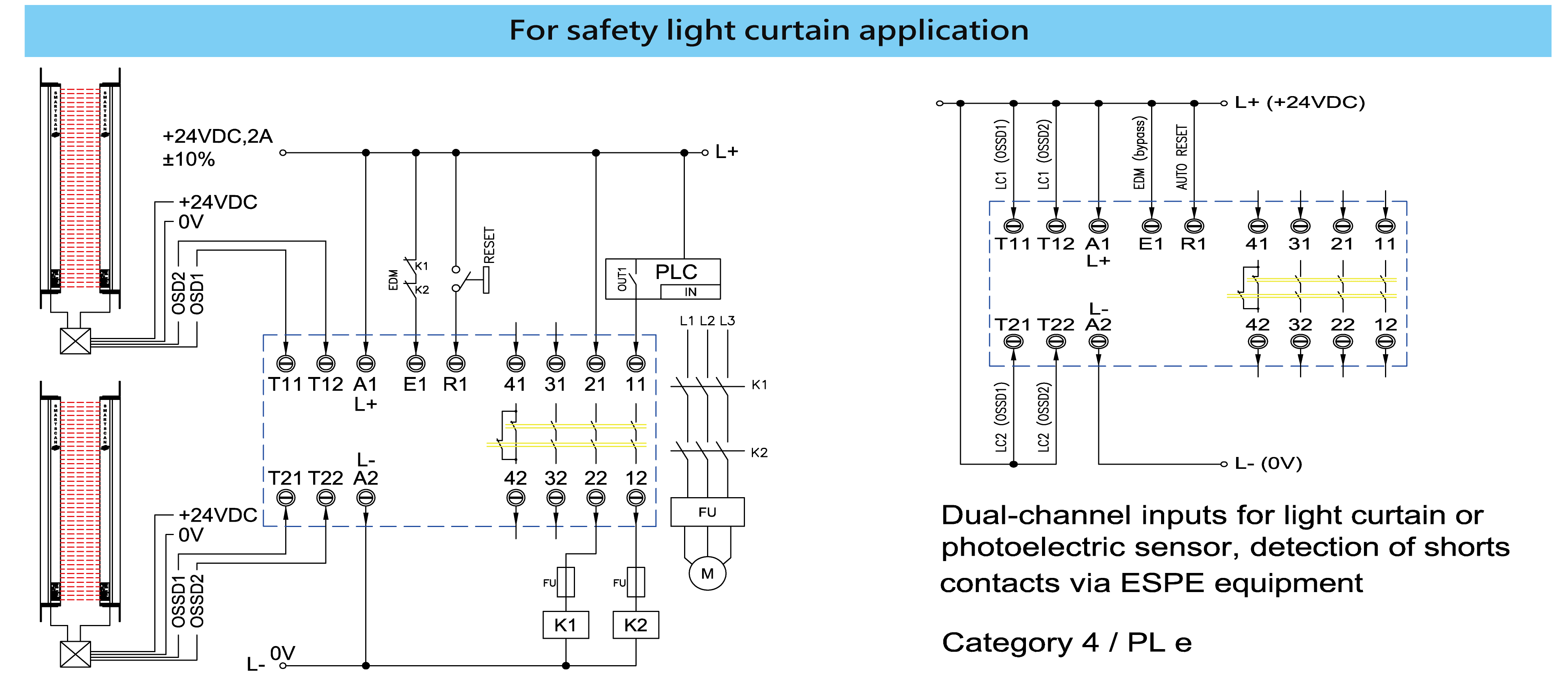

TSRU-301-VD Recommended wiring diagram

TSRU-200-VD Recommended wiring diagram

TSRU-301-VD Recommended wiring diagram

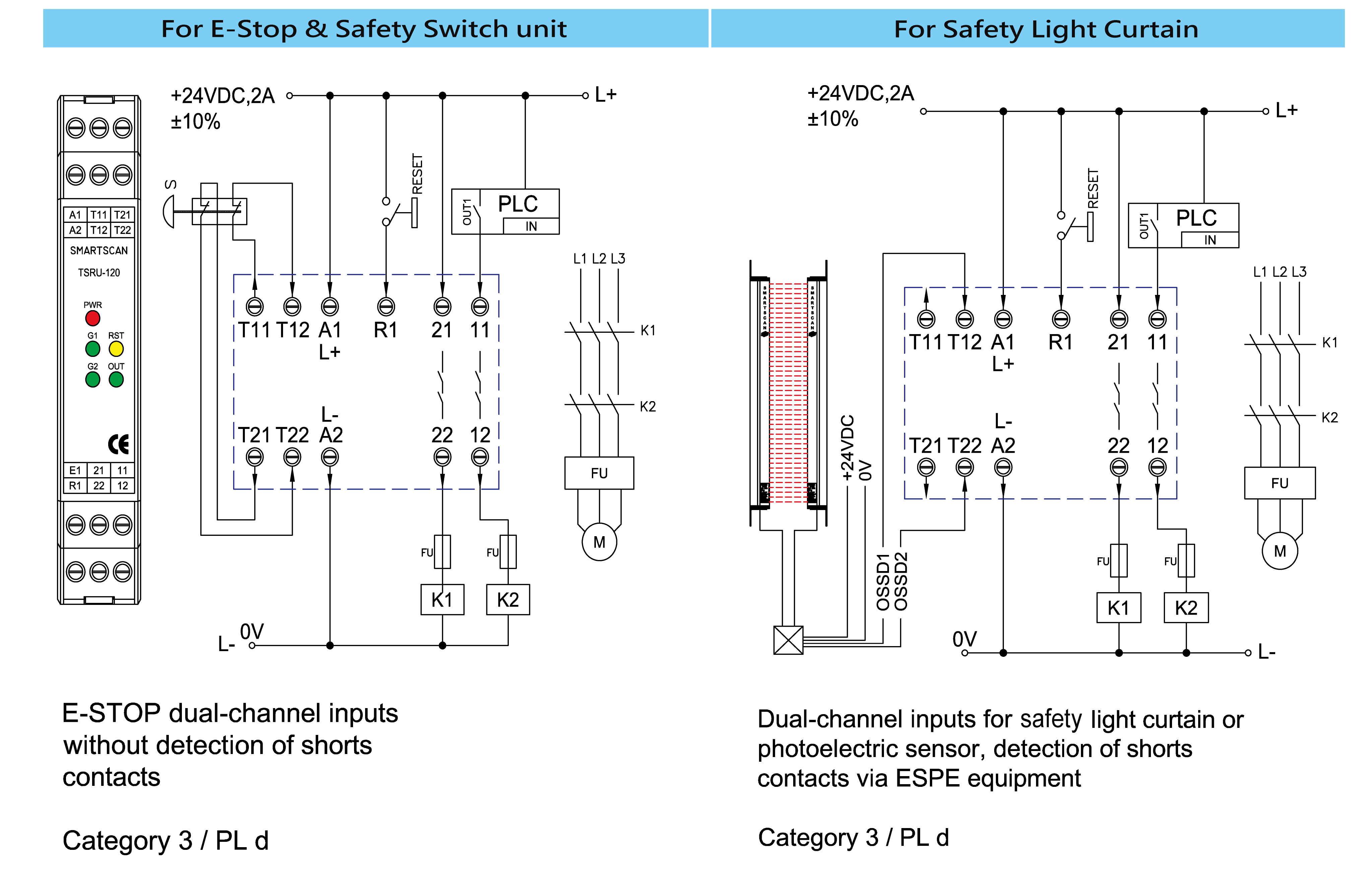

TSRU-120 Recommended wiring diagram

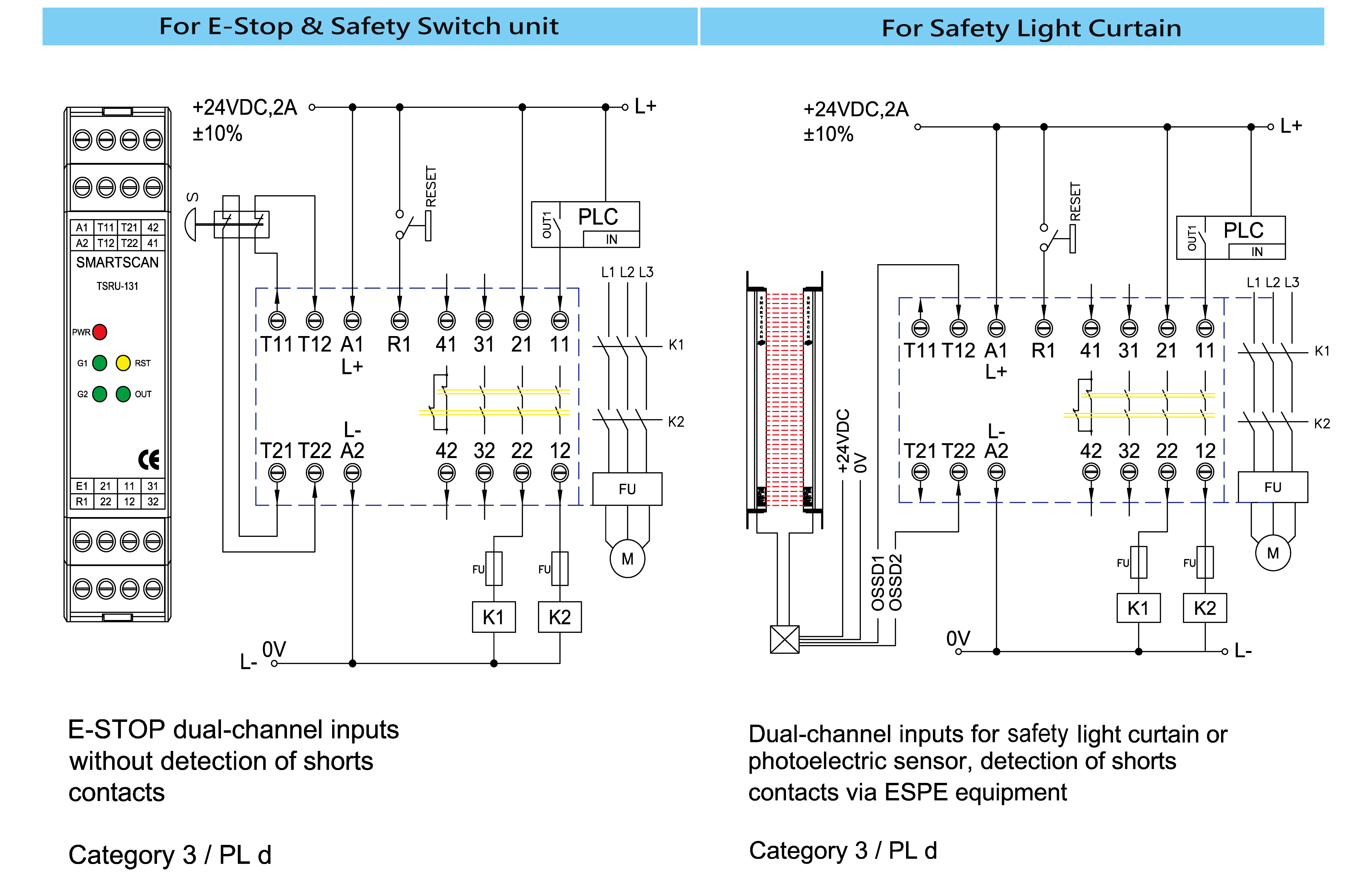

TSRU-131 Recommended wiring diagram

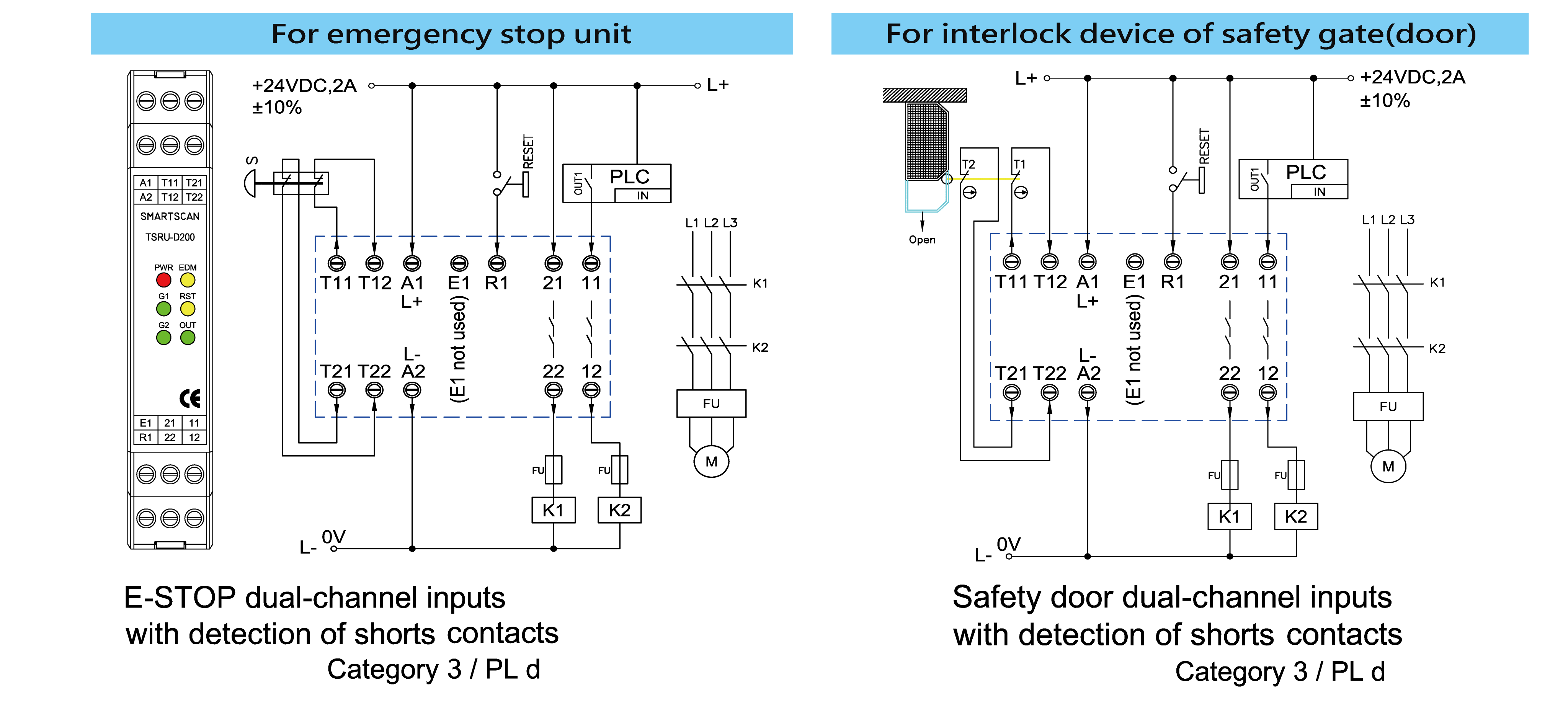

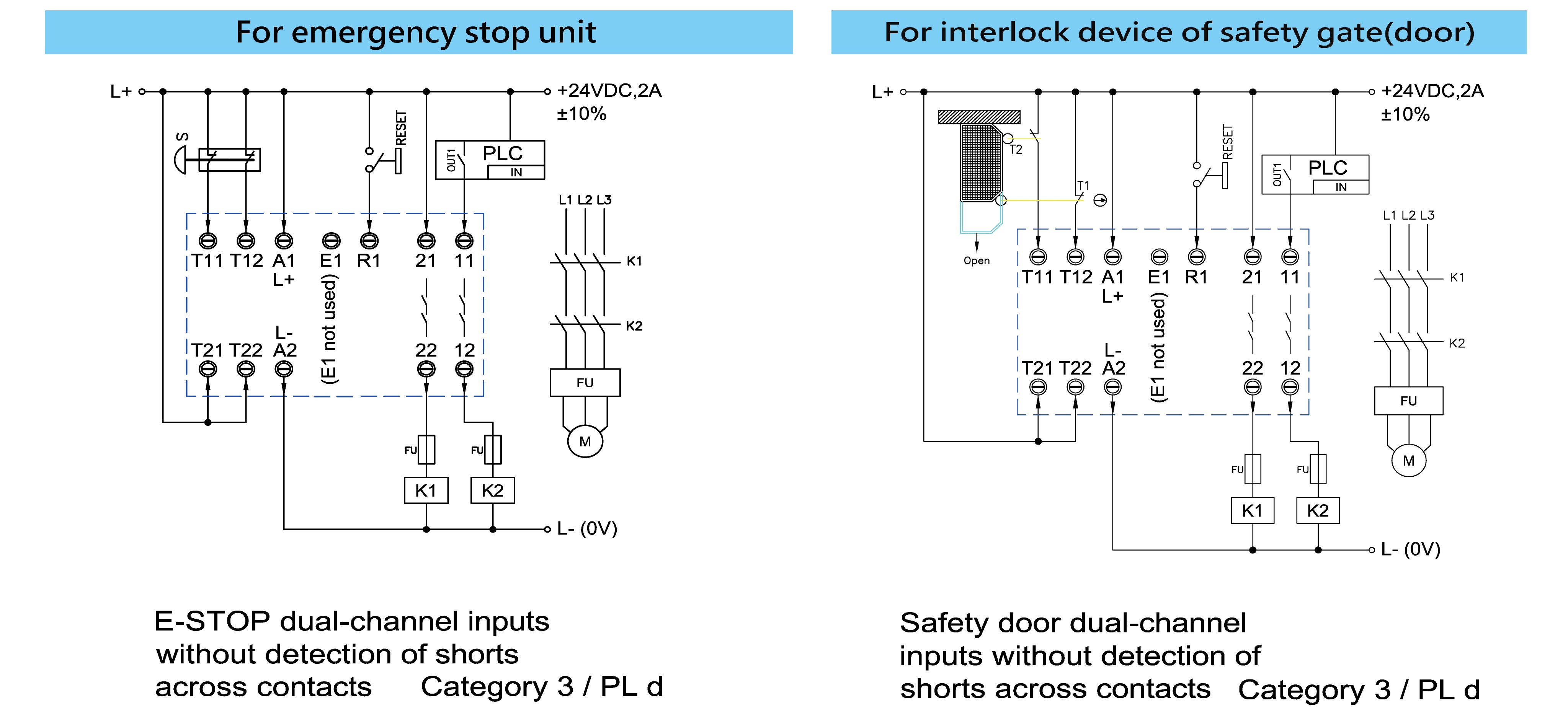

TSRU-D200 Recommended wiring diagram

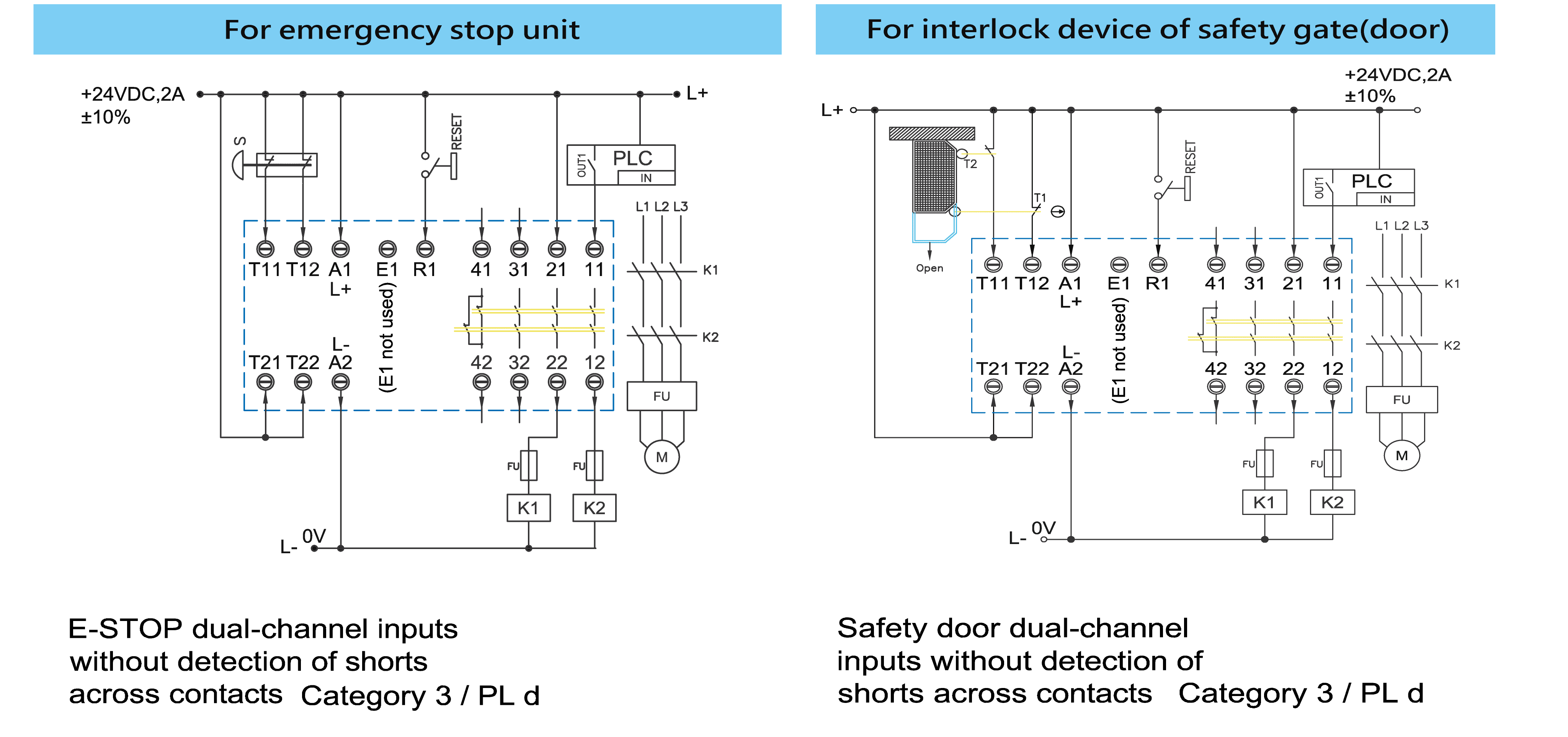

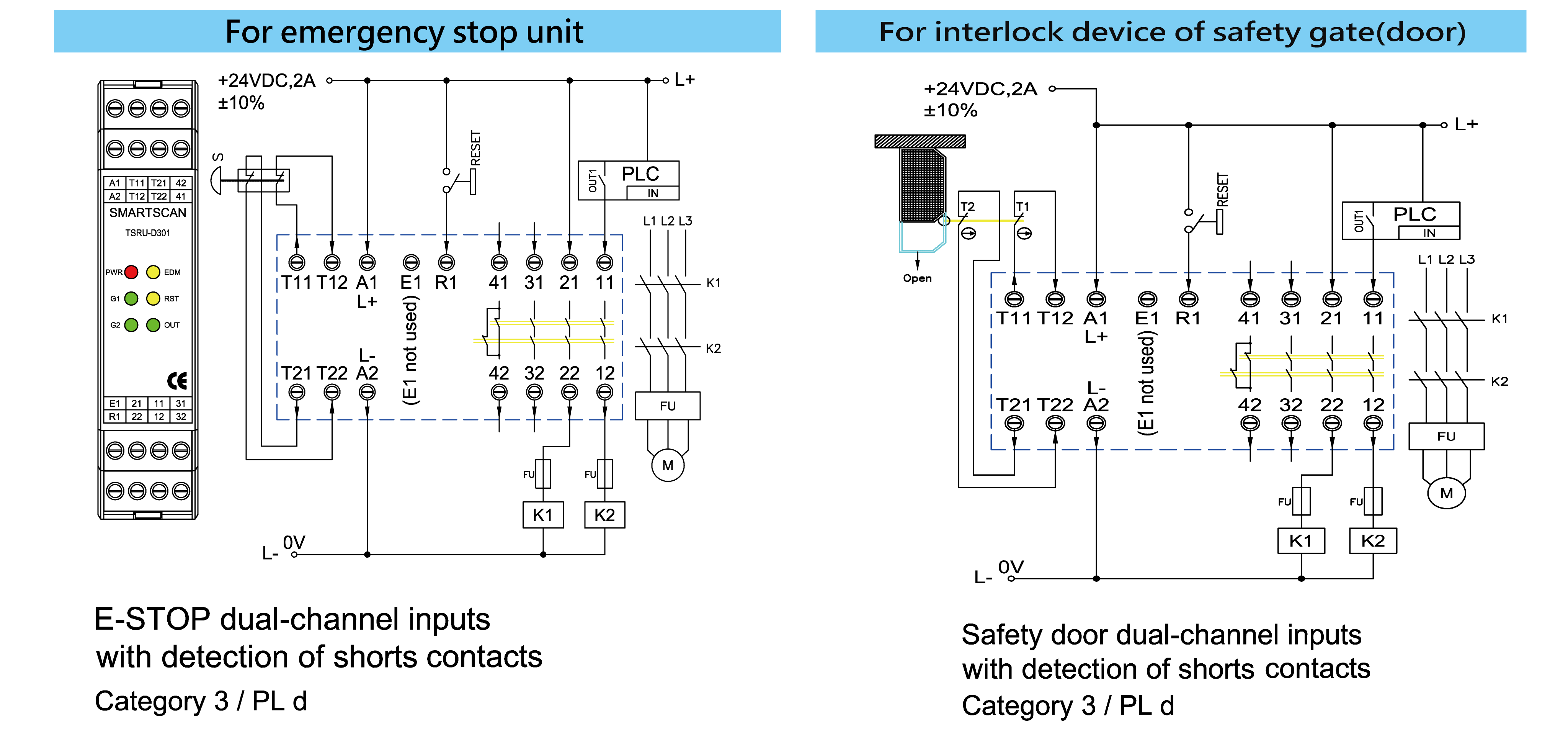

TSRU-D301 Recommended wiring diagram

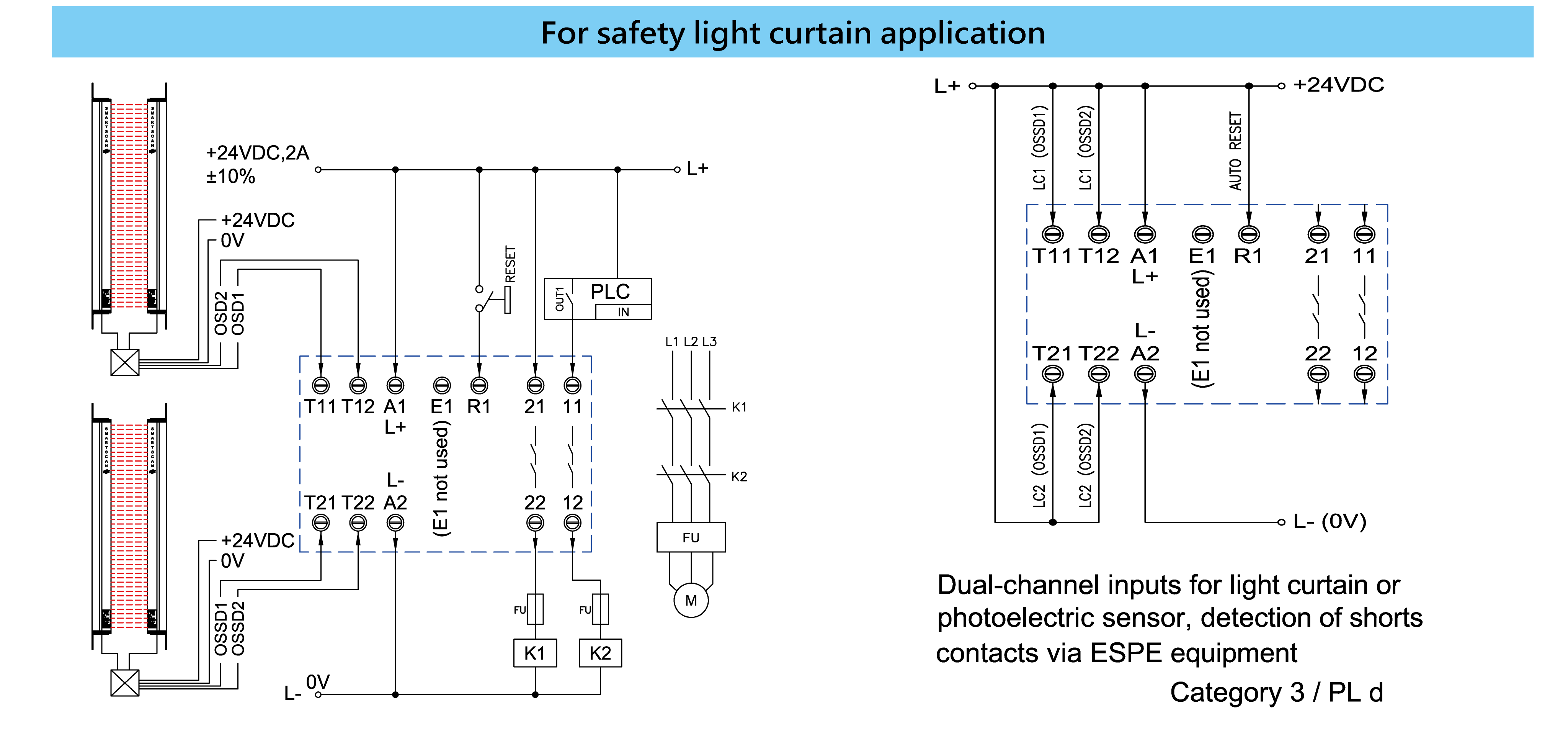

TSRU-D200-VD Recommended wiring diagram

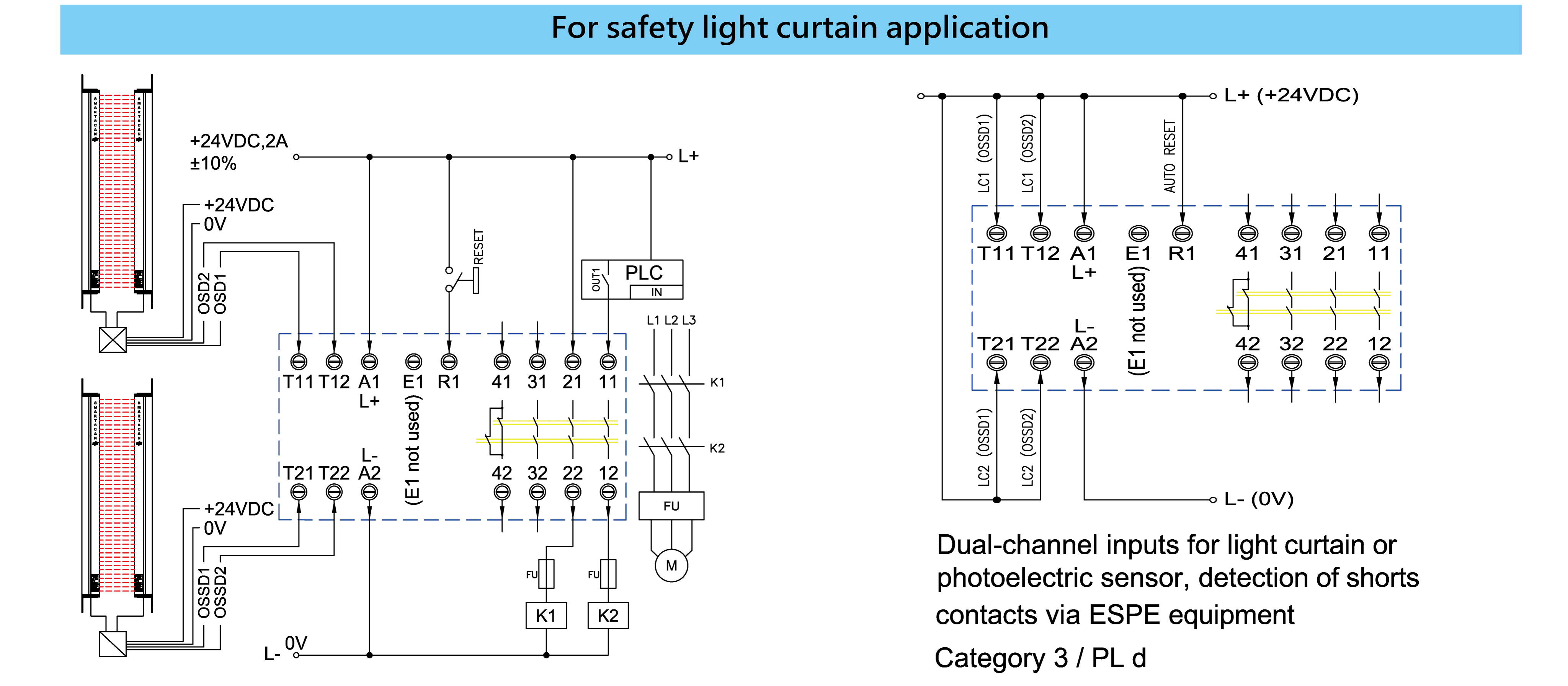

TSRU-D301-VD Recommended wiring diagram

TSRU-D200-VD Recommended wiring diagram

TSRU-D301-VD Recommended wiring diagram
