Smartscan TW device ND-19HS is improvements have been made to oter commercially available detection devices to reduce false alarms, and the pass through minimum detection 2mm the detection device, applicable to automated Stamping Production Lines.
|

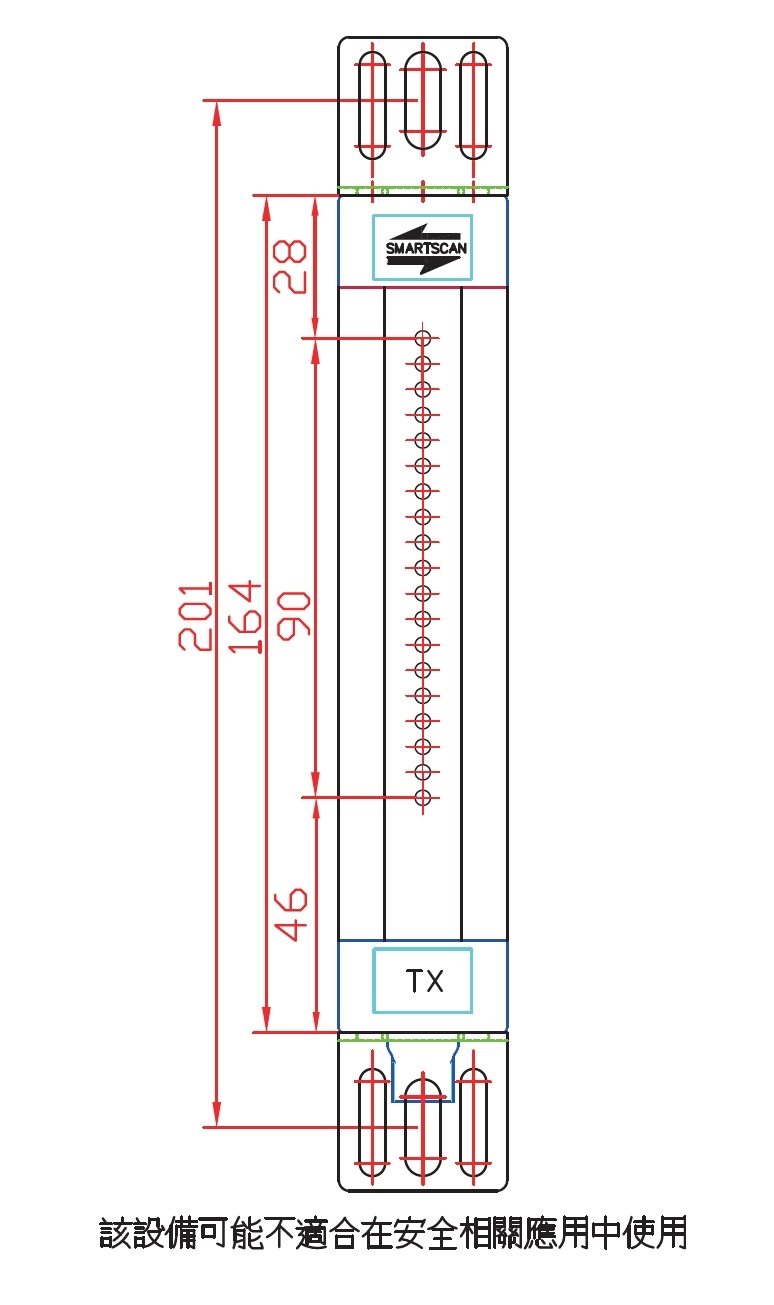

Number of Beams
|
19
|
|
Optical Axis Pitch
|
5mm
|
|
Detection Zone
|
90mm
|
|
Operating distance
|
0.2m~1.2m
|
|
TYPE
|
Infrared Wavelength 880nm
|
|
Response Time
|
1ms
|
|
Operating Temperature
|
0℃ to +50℃
|
|
Enclosure Rating
|
IP67
|
|
Status Indicator Light
|
Yellow LED = Power Indicator Light Green LED = Normal! No Unshielded Red LED = Interrupt |
|
Operating Voltage
|
12-24VDC Ripple <10% Diode Protected
|
|
Power consumption
|
30mA
|
|
Connector
|
M12 4core
|
|
Safety Standards
|
CE Mark
|
|
Warranty Period
|
1 Year
|
|

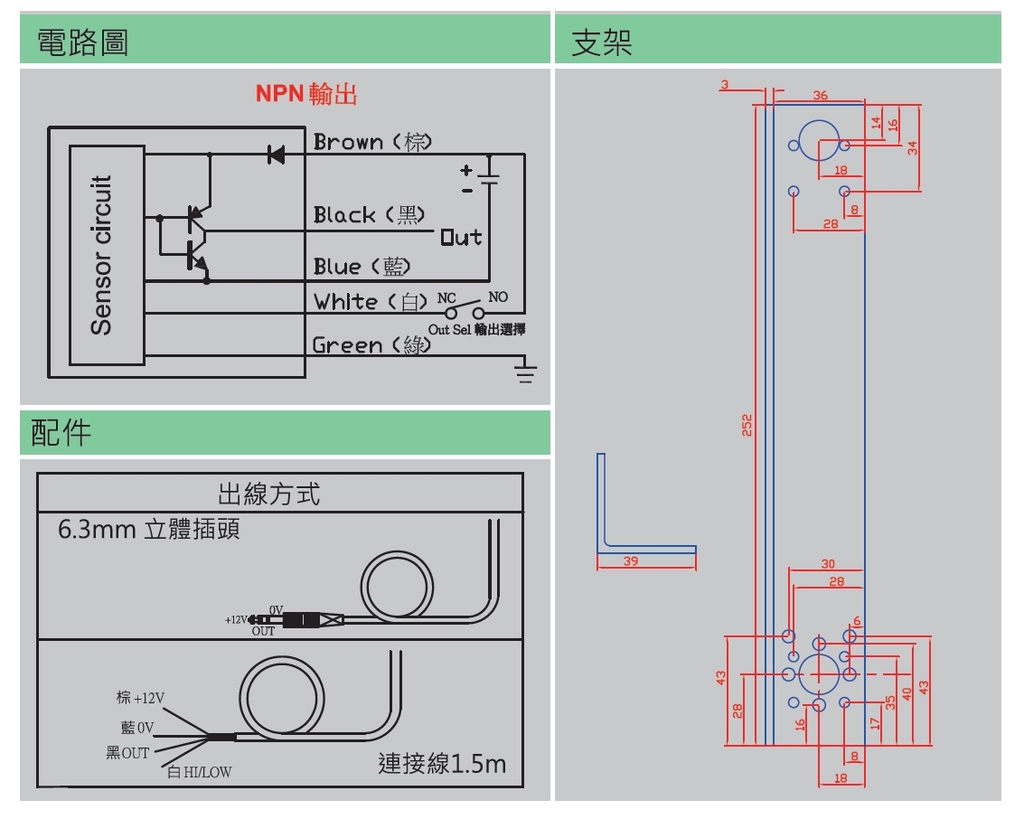

Output (NPN)
|
Hi +20mA, Low 40mA
|
